In recent years, the rapid growth of the new energy vehicles industry has increased demand for EV charging stations. Manufacturers strive to enhance their competitiveness in this evolving market. How can we ensure electrical installation protection and prevent electric shock hazards during EV charging? According to IEC 61581-1, each charging station must use a residual current device (RCD) for current sensing and system-wide protection.

As a leading power supply manufacturer and innovator, Mornsun offers safe, reliable and cost-effective TLB6-A1 series residual current transducer compliant with IEC 62752 and IEC 62955 standards that help enhance the competitiveness of your EV charging system. With compact size, multiple package designs, high reliability, fast response speed, and excellent accuracy, they provide complete protection while reducing design and maintenance costs for customers.

The selection of the appropriate Residual Current Device (RCD) for protection depends on the specific requirements of the system. Different types of RCDs can detect different types of residual currents. During the EV charging process, different types of residual currents, such as residual sinusoidal AC currents, residual pulsating DC currents and residual smooth DC currents, may generate in the EV charging system. With decades of experience, Mornsun offers accurate and fast current detection solution for EV chargers - Residual Current Transducer with in-house designed core ICs. They can detect Type A + Smooth DC of 6mA residual currents and have sensitive trigger for timely response, surpassing the Type A and Type AC RCD solutions.

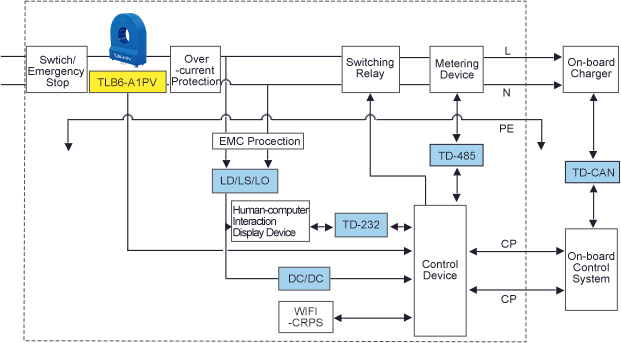

Mornsun TLB6-A1 series residual current transducer offers compact size and multiple package designs, meeting various board layout and installation requirements for both single-phase and three-phase inputs. This flexibility makes it easy to install and meets different application scenarios.

• Complete protection functions
  • Hardware and software double protection, to ensure the stability of tripping
  • Overvoltage protection, start-up shield, and magnetic saturation protection
• Strong anti-interference capability
  • Surge current capability up to 5kA
  • Magnetic shielding protection
  • Built-in innovative temperature compensation, low temperature drift
  • RS: 30V/m; ESD: Contact ±4kV, Air ±8kV
• One key calibration function for accuracy in different environments
  • Eliminates the influence of small leakage currents generated by environmental factors or system parasitic parameters on real residual currents
• Accurate and fast current sensing
  • Action time meets IEC 62955 with sensitive trigger
  • Fast response to residual current events

With in-house production of key components, a strong R&D team, advanced production management system and professional services, Mornsun ensures high reliability and consistency in mass production, as well as fast delivery and cost savings for customers. In addition, the products have TUV certified test reports to meet international standards.

Technical team. Our R&D engineers at MORNSUN have designed a series of power solutions with your EV charging needs in mind. You can choose one or more of our advanced and cost-efficient components, from residual current transducer and AC DC converters / DC DC converters to AC DC enclosed switching power supplies and RS485/CAN transceivers, etc. Guided by the service principle of "trustworthy", MORNSUN offers the best products, fast and local service, and efficient pre-sales and after-sales support for clients worldwide.

MORNSUN provides professional power supply services. Backed by a perfect management system that consists of advanced research technology, a high-quality raw material platform, advanced equipment, excellent manufacturing process management, specialized screening sequence on reliability and rich experience, each solution from MORNSUN is designed to improve the stability, safety, and reliability of your EV charging system.

Contact us now to request a sample and a quotation!
