In order to maximize the economic benefits of photovoltaic power generation, the solar tracker is used to drive PV panels to follow the sun all day to increase the power generation. For example, the Horizontal Single-Axis Tracker can increase power generation about 25% to 35%.

However, the solar tracking system requires higher installation and maintenance cost, so most customers usually choose the products with the highest cost performance.That's why the trend is towards self-powered solutions for the solar tracker to reduce costs.

MORNSUN’s self-powered solution for solar tracker does not require additional PV panels and power supply lines, allowing more space for effective power generation and increasing efficiency, making it easy to install and maintain and reducing costs.

The self-powered solutions of solar tracker requires power with ultra-high input range, high isolation, compliance with safety design, meeting operating temperature, altitude requirements and input anti-reverse protection. MORNSUN PV series perfectly are suited to the needs.

• High isolation
  withstand voltage
  reinforced insulation

• High input
  voltage range
  200-1000V/1500V

• Input reverse
  protection
  Avoid incorrect
  input wiring

• Safety design
  and certification
  Meets safety distance,
  insulation requirements, etc

• Operating temperature
  and altitude
  Ensure reliability in
  the harsh environment

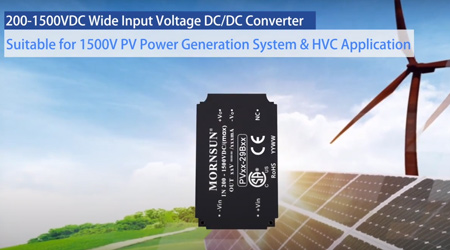

• 1: Simplifying design: With 300—1500Vdc input and Being powered directly from the high voltage, and then power supply to batteries and motors.
• 2: Save cost: PV350 enables a single Tracker to drive more PV panels
• 3: High reliability: UL1741、EN62109、 CSA-C22.2 No.107.1
• 4: Full power range available(40W、120W、150W、200W、350W)

Provides low noise, high accuracy 5V to the main control board DATASHEET >>

Integrated isolated DCDC power supply, and simplifying design DATASHEET >>

• K7805-3AR3
• TD041S485H
