Mornsun offers a new ultra-thin DC/DC converter family that covers the power range of 3W, 6W, 10W and 15W(the thinnest is 6.10mm). The new series URB/VRB_J(M)T/D provide 4:1 and 2:1 ultra-wide input range, feature 1500VDC isolation voltage, and deliver efficiencies up to 89%. Protections for input under-voltage, over voltage, over-current, output short circuit are also included.

In addition, Mornsun ultra-thin family also has an open frame non-isolated DC-DC converter K78-JT-500R3 series(the thinnest is 3.50mm). The K78-JT-500R3 series features SMD package, delivers efficiency up to 95%, provides an ultra-wide input voltage range of 4.75 - 36V, and eliminates the need for a heat sink. What’s more, this series features low stand-by power consumption and short-circuit protection.

High reliability, wide applications

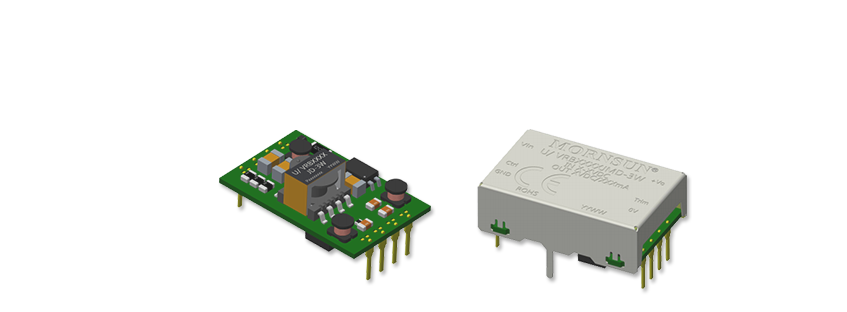

    VRB_J(M)T/D & URB_J(M)T/D series
  • High efficiency up to 89%
  • No-load power consumption as low as 0.096W
  • Operating temperature range:-40℃ ~ +85℃
  • Isolation voltage: 1500VDC
  • Meets CISPR32/EN55032 CLASS B requirements

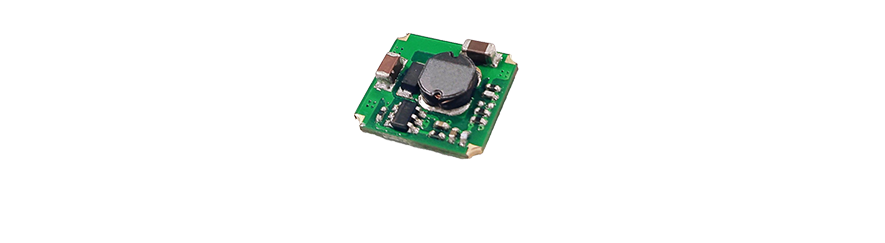

    K78_JT-500R3 series
  • Ultra-thin SMD Package, thickness≤3.50mm
  • High efficiency up to 95%
  • No-load input current as low as 0.2mA
  • Operating temperature range: -40℃ ~+85℃
  • Output short-circuit protection

Typical application

UAV (unmanned aerial vehicle) flight control system
Power system's requirements of UAV
Compact size, light, high power density
VRB_J(M)T/D & URB_J(M)T/D
Save the design time of power system
Improve the battery life of UAV
Energy saving with the frequency conversion technology
High efficiency, high flexibility
Applications
VRB_J(M)T/D & URB_J(M)T/D series
  • Industrial control
  • Power grid
  • Instruments
  • Communication
K78_JT-500R3 series
  • Industrial control
    Forklift robot
  • Medical
    Electrocardiograph
  • Mining
    Communication system
