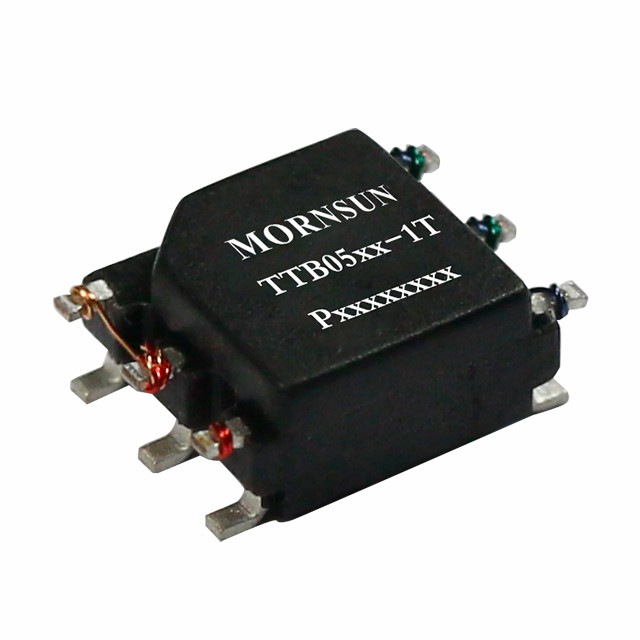

TTB05xx-1T
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
TTB05xx-1T transformers feature 1650VDC primary side to secondary side and an operating temperature of -40℃ to +125℃.It can be matched to used with Mornsun IC SCM1201ATA to achieve a 1W DC-DC converter with 5V input. They are suitable for pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation(VDC) | Package | Skeleton structure | Topology | Design Reference | Footprint & 3D | Markings | Datasheet | Sample |
| TTB0503-1T | ≤1 | 4.5~5.5 | 3.3 | 1 | 1650 | SMD | - | Push-Pull |
|
- | |||
| TTB0505-1T | ≤1 | 4.5~5.5 | 5 | 1 | 1650 | SMD | - | Push-Pull |
|
- | |||
| TTB0509-1T | ≤1 | 4.5~5.5 | 9 | 1 | 1650 | SMD | - | Push-Pull |
|
- |
* For reference only. The detailed info please refer to the datasheet.
