TD5(3)21SCAN

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

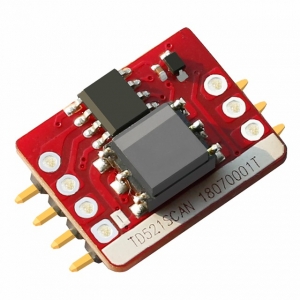

The main function of TD321SCAN/ TD521SCAN series is to convert TTL / CMOS level into isolated CAN bus differential level signals. The use of IC integrated technology allows for power isolation, signal isolation, CAN transceiver and bus protection all in one single CAN bus transceiver module, which withstands an isolation test voltage of 3000VDC. Also, they can easily be embedded in the user's end equipment, to achieve fully functional CAN bus network connectivity. The products are using pick and place SMD packaging technology, thus enabling the use of fully automated processing.

MORNSUN_Signal Isolation - Transceiver Module_TD5(3)21SCAN
MORE
Loading...

Swipe to view all →
Product No. Integrated Power No of Channel Transmission Rate(bps) Vin(VDC) Nodes Number Isolation Package Features Footprint & 3D Markings Datasheet Sample
TD321SCAN 1 5k~1M 3.3 110 2500VDC SMD Open-frame
TD521SCAN 1 5k~1M 5 110 2500VDC SMD Open-frame

* For reference only. The detailed info please refer to the datasheet.
