TD5(3)01DCANH3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
The main function of TD301DCANH3/ TD501DCANH3 series is to convert TTL / CMOS level into isolated CAN bus differential level signals. The use of IC integrated technology allows for power isolation, signal isolation, CAN transceiver and bus protection all in one single CAN bus transceiver module, which withstands an isolation test voltage of 3000VDC. Also, they can easily be embedded in the user's end equipment, to achieve fully functional CAN bus network connectivity.

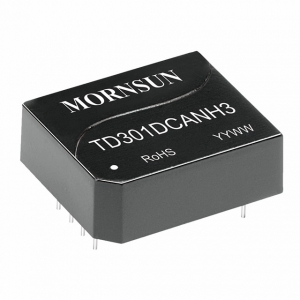

01DCANH3.jpg)
| Product No. | Integrated Power | No of Channel | Transmission Rate(bps) | Vin(VDC) | Nodes Number | Isolation | Package | Features | Footprint & 3D | Markings | Datasheet | Sample |
| TD301DCANH3 | √ | 1 | 20K~1M | 3.3 | 110 | 3000VDC | DIP | Enhanced | - | |||
| TD501DCANH3 | √ | 1 | 20K~1M | 5 | 110 | 3000VDC | DIP | Enhanced | - |
* For reference only. The detailed info please refer to the datasheet.
