QA
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features

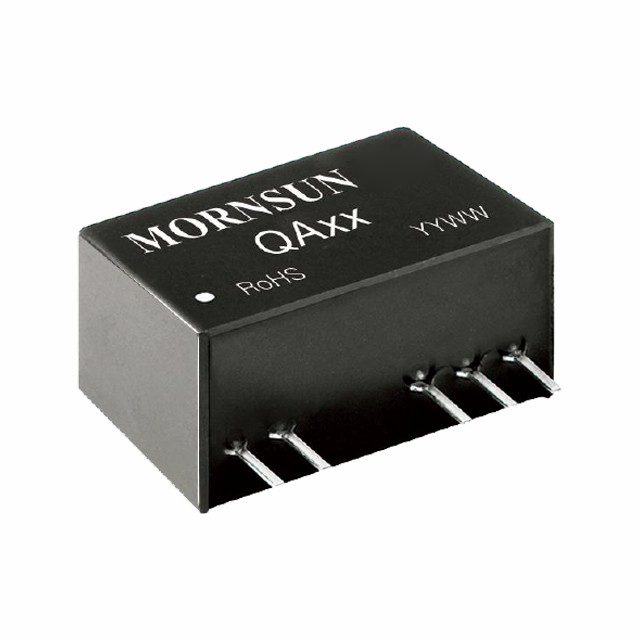

The QA series is a DC-DC module power supply designed for IGBT drivers. It uses an asymmetric voltage output inside to minimize the drive loss of the IGBT. Output short-circuit protection and self-recovery capabilities are also provided.
| Product No. | Vin(VDC) | Iout | Operating Temperature | Positive Output(VDC) | Negative Output(VDC) | Efficiency(%) | Isolation(VAC) | Package | Features | Footprint & 3D | Markings | Datasheet | Sample |
| QA01 | 15 (14.5-15.5) | +80/-40 | -40℃ to +105℃ | 15 | -8.7 | 80 | 3000 | SIP7 | Short-Circuit Protection | ||||
| QA01-09 | 15 (14.5-15.5) | 111 | -40℃ to +105℃ | 9 | - | 80 | 3000 | SIP7 | Short-Circuit Protection | ||||
| QA01-A09 | 15 (14.5-15.5) | +55/-55 | -40℃ to +105℃ | 9 | -9 | 80 | 3000 | SIP7 | Short-Circuit Protection | ||||
| QA01-17 | 15 (14.5-15.5) | +80/-40 | -40℃ to +105℃ | 17 | -9 | 80 | 3000 | SIP7 | Short-Circuit Protection | ||||
| QA02 | 12 (11.6-12.4) | +80/-40 | -40℃ to +105℃ | 15 | -8.7 | 80 | 3000 | SIP7 | Short-Circuit Protection | ||||
| QA03 | 24 (23.3-24.7) | +80/-40 | -40℃ to +105℃ | 15 | -8.7 | 80 | 3000 | SIP7 | Short-Circuit Protection | ||||
| QA04 | 12 (9-15) | +100/-80 | -40℃ to +105℃ | 15 | -8 | 80 | 3000 | SIP7 | Short-Circuit Protection |
* For reference only. The detailed info please refer to the datasheet.
