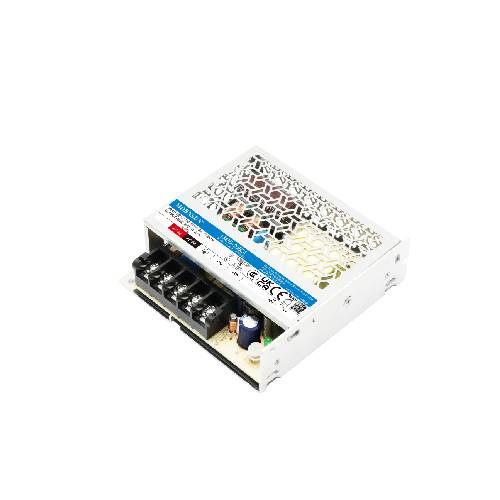

LM75-20Bxx
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
LM75-20Bxx series is one of Mornsun's enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | Efficiency(%) | Isolation | Footprint & 3D | Markings | Datasheet | Sample |
| LM75-20B05 | 70 | 85-264 | 120-370 | 5 | 14A | 86 | 4000VAC | ||||
| LM75-20B12 | 72 | 85-264 | 120-370 | 12 | 6A | 88 | 4000VAC | ||||
| LM75-20B15 | 75 | 85-264 | 120-370 | 15 | 5A | 88 | 4000VAC | ||||
| LM75-20B36 | 75.6 | 85-264 | 120-370 | 36 | 2.1A | 90 | 4000VAC | ||||
| LM75-20B24 | 76.8 | 85-264 | 120-370 | 24 | 3.2A | 90 | 4000VAC | ||||
| LM75-20B48 | 76.8 | 85-264 | 120-370 | 48 | 1.6A | 91.5 | 4000VAC |
* For reference only. The detailed info please refer to the datasheet.
