LM350-12Bxx
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features

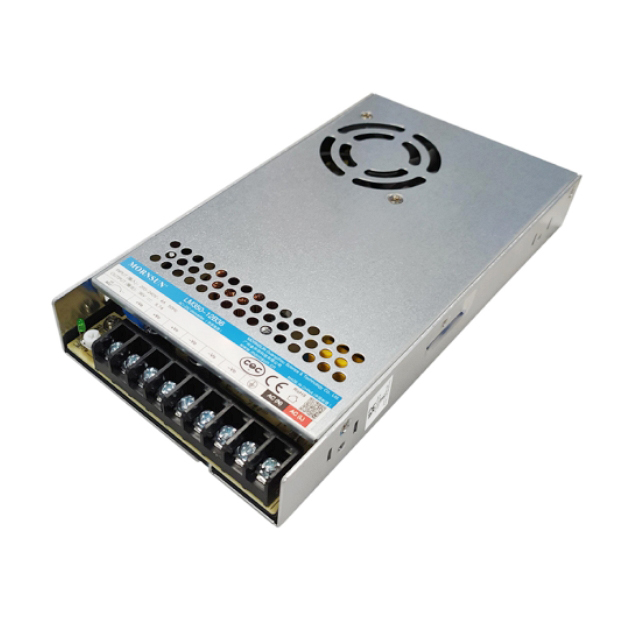

LM350-12Bxx series is one of Mornsun's enclosed AC-DC switching power supply. It features AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, EC/UL/EN62368, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | Efficiency(%) | Isolation | Footprint & 3D | Markings | Datasheet | Sample |
| LM350-12B05 | 300 | 176-264 | 240-370 | 5 | 60A | 84 | 3000VAC | ||||
| LM350-12B07 | 340 | 176-264 | 240-370 | 6.8 | 50A | 84 | 3000VAC | ||||
| LM350-12B12 | 348 | 176-264 | 240-370 | 12 | 29A | 85.5 | 3000VAC | ||||
| LM350-12B15 | 348 | 176-264 | 240-370 | 15 | 23.2A | 87.5 | 3000VAC | ||||
| LM350-12B36 | 349.2 | 176-264 | 240-370 | 36 | 9.7A | 88 | 3000VAC | ||||
| LM350-12B24 | 350.4 | 176-264 | 240-370 | 24 | 14.6A | 87 | 3000VAC | ||||
| LM350-12B48 | 350.4 | 176-264 | 240-370 | 48 | 7.3A | 89 | 3000VAC |
* For reference only. The detailed info please refer to the datasheet.
