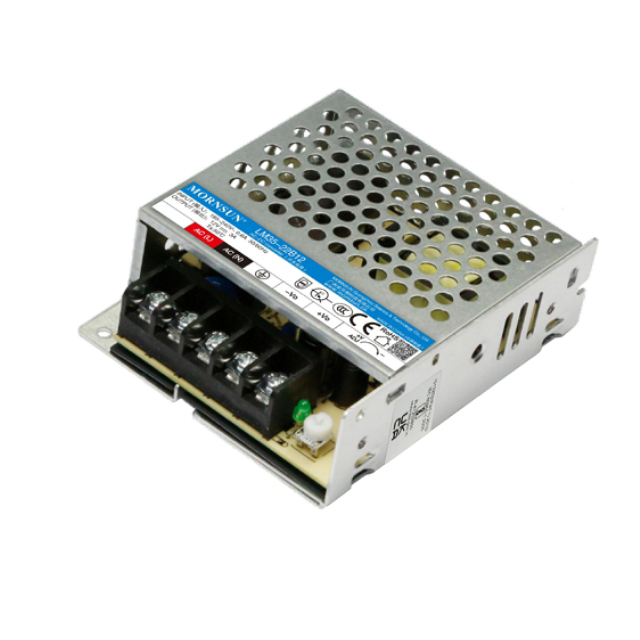

LM35-22Bxx
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
LM35-22Bxx series is one of Mornsun's enclosed AC-DC switching power supply. It features AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | Efficiency(%) | Isolation | Footprint & 3D | Markings | Datasheet | Sample |
| LM35-22B05 | 35 | 165-264 | 180-370 | 5 | 7A | 86 | 4000VAC | ||||
| LM35-22B12 | 36 | 165-264 | 180-370 | 12 | 3A | 87 | 4000VAC | ||||
| LM35-22B15 | 36 | 165-264 | 180-370 | 15 | 2.4A | 89 | 4000VAC | ||||
| LM35-22B24 | 36 | 165-264 | 180-370 | 24 | 1.5A | 88 | 4000VAC |
* For reference only. The detailed info please refer to the datasheet.
