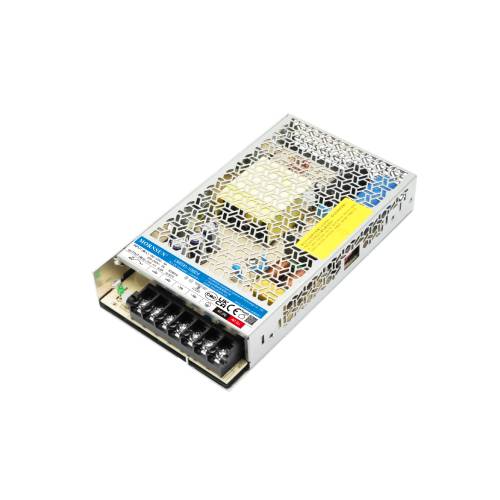

LM200-10Bxx
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
LM200-10Bxx series is one of Mornsun's enclosed AC-DC switching power supply. It features selectable AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | Efficiency(%) | Isolation | Footprint & 3D | Markings | Datasheet | Sample |
| LM200-10B05 | 150 | 90-132/180-264 | 240-370 | 5 | 30A | 87 | 3000VAC | ||||
| LM200-10B12 | 204 | 90-132/180-264 | 240-370 | 12 | 17A | 87.5 | 3000VAC | ||||
| LM200-10B15 | 210 | 90-132/180-264 | 240-370 | 15 | 14A | 88 | 3000VAC | ||||
| LM200-10B24 | 211.2 | 90-132/180-264 | 240-370 | 24 | 8.8A | 88.5 | 3000VAC | ||||
| LM200-10B48 | 211.2 | 90-132/180-264 | 240-370 | 48 | 4.4A | 89.5 | 3000VAC | ||||
| LM200-10B36 | 212.4 | 90-132/180-264 | 240-370 | 36 | 5.9A | 89 | 3000VAC |
* For reference only. The detailed info please refer to the datasheet.
