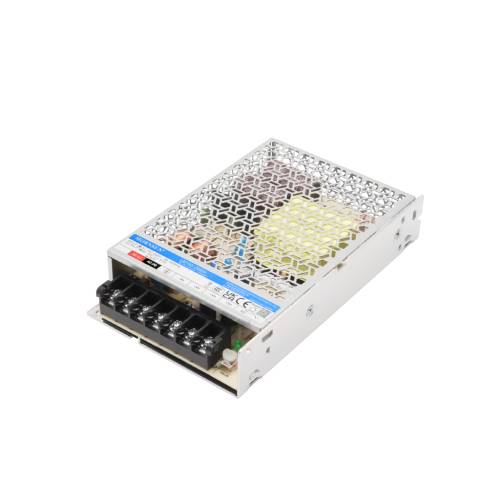

LM150-20Bxx

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

LM150-20Bxx series is one of Mornsun's enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, UL/EN/IEC62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

MORNSUN_AC/DC - Enclosed SMPS Power Supply_LM150-20Bxx
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout Efficiency(%) Isolation Footprint & 3D Markings Datasheet Sample
LM150-20B12 150 85-264 120-370 12 12.5A 86 4000VAC
LM150-20B15 150 85-264 120-370 15 10A 87 4000VAC
LM150-20B36 154.8 85-264 120-370 36 4.3A 88 4000VAC
LM150-20B24 156 85-264 120-370 24 6.5A 88 4000VAC
LM150-20B48 158.4 85-264 120-370 48 3.3A 89 4000VAC

* For reference only. The detailed info please refer to the datasheet.
