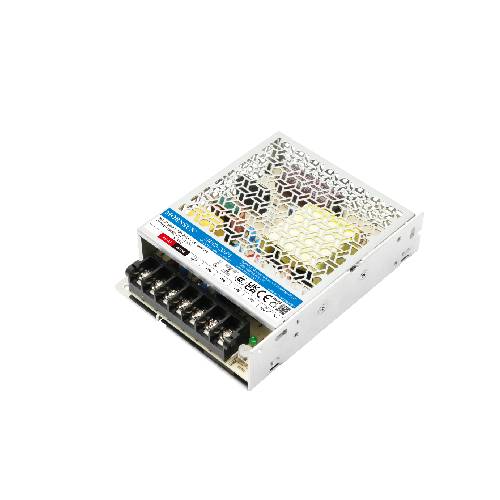

LM100-20Bxx

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

LM100-20Bxx series is one of Mornsun's enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage,cost-effective, low no load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032/IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

MORNSUN_AC/DC - Enclosed SMPS Power Supply_LM100-20Bxx
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout Efficiency(%) Isolation Footprint & 3D Markings Datasheet Sample
LM100-20B05 90 85-264 120-370 5 18A 86 4000VAC
LM100-20B36 100.8 85-264 120-370 36 2.8A 90 4000VAC
LM100-20B12 102 85-264 120-370 12 8.5A 87.5 4000VAC
LM100-20B15 105 85-264 120-370 15 7A 87.5 4000VAC
LM100-20B24 108 85-264 120-370 24 4.5A 90 4000VAC
LM100-20B48 110.4 85-264 120-370 48 2.3A 91 4000VAC

* For reference only. The detailed info please refer to the datasheet.
