Cost-effective 960W 3-phase DIN rail Power Supply LITF960-26BxxS Series

Cost-effective 960W 3-phase DIN rail Power Supply LITF960-26BxxS Series.png

MORNSUN offers a range of DIN rail power supply solutions that cater to different application needs. You can opt for plastic or metal cases for general use, while high-power rails ranging from 120-960W cater to high-end applications. Additionally, for applications with strict working conditions and budget constraints, the new LITF960-26BxxS series of 960W three-phase rail power supply is an excellent choice. This series provides great performance while eliminating features like communication found in the high-end three-phase DIN rail unit LITF960-26Bxx, making it a great cost-effective option.



Advantages

1. Wide input voltage range: 3 x 320 - 575VAC, 450 - 820VDC

2. High performance

  • Supporting parallel (3+1 current sharing)

  • Efficiency up to 96%; Active PFC, PF up to 0.95

  • Operating temperature range: -40℃ to +70℃, full load @50℃, suitable for complex temperature environments

  • Output short circuit, over-current, over-voltage, over-temperature protections


3. High reliability

  • Baseplate double-sided conformal coating protects dust or outdoor applications

  • High isolation voltage up to 4000VAC, protects applications with high voltage requirements

  • The heat dissipation structure is a dual-channel design of cold and hot separation to achieve better heat dissipation and higher reliability

  • Outstanding EMC performance: CE&RE meet CISPR32/EN55032 CLASS B

  • Safety according to UL/EN/IEC62368, EN/IEC61000, UL/EN61010, CISPR32/EN55032, UL508 standards



Comparison

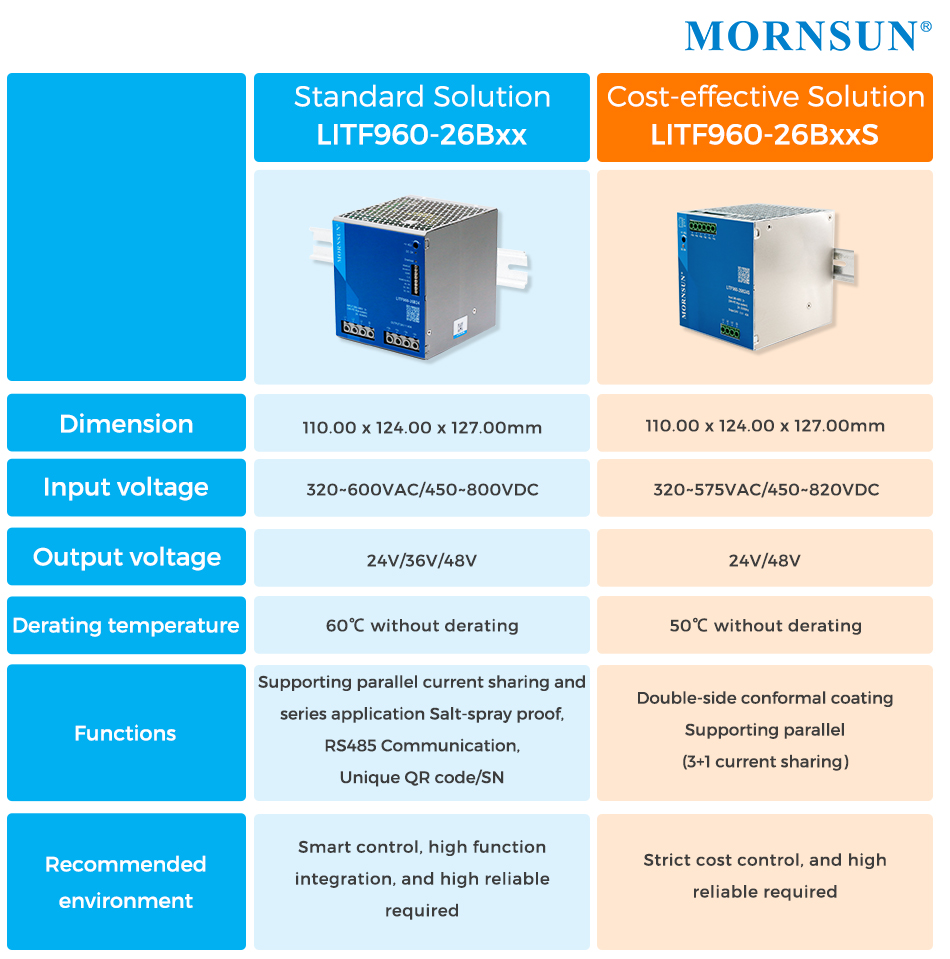

Comparison for LITF960-26BxxS and LITF960-26Bxx.jpg



Applications

They are widely used in areas such as industrial control, LED, street lamp control, electric power, security, communication, and other fields that require high stability, anti-interference, and electrical performance of the power supply.

The products should be used in a natural air cooling environment, if used in a closed environment, please contact our FAE team.

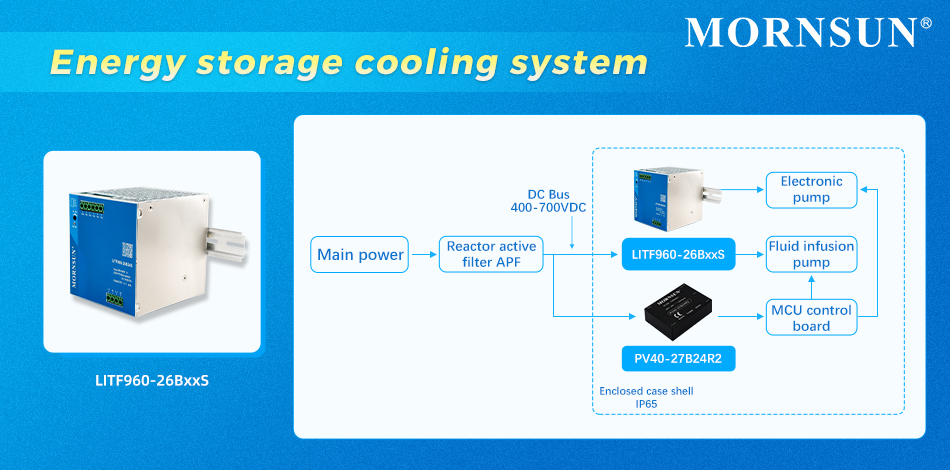

Typical application: Energy storage cooling system.jpg



Features

  • Wide AC Input voltage range: 3 x 320-575VAC / 450-820VDC

  • Operating temperature range: -40℃ to +70℃

  • Active PFC, PF up to 0.95

  • Standard DIN-Rail mounting

  • High efficiency, high reliability

  • DC OK, Supporting parallel (3+1 current sharing)

  • Double-sided conformal coating

  • Output short circuit, over-current, over-voltage, over-temperature protections

  • Operating altitude up to 5000m

  • Safety according to UL/EN/IEC62368, EN/IEC61000, UL/EN61010, CISPR32/EN55032, UL508 standards



* For detailed information please refer to the related datasheet, product news is for reference only.
