150W Economical AC/DC DIN Rail Power Supply - LI150-20BxxR2S Series

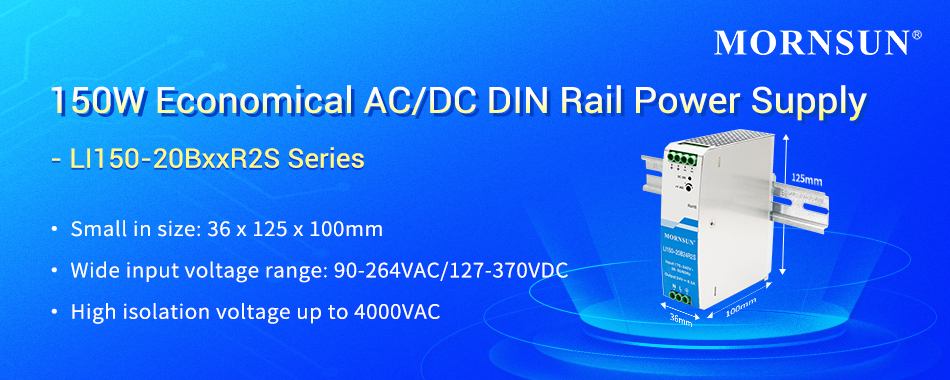

150W Economical AC/DC DIN Rail Power Supply - LI150-20BxxR2S Series.jpg

MORNSUN introduced the LI150-20BxxR2S series, a new addition to the existing 75W/120W LI series of metal DIN rail power supplies without PFC. LI150-20BxxR2S series offers an input voltage range of 90 - 264VAC/127 - 370VDC, suitable for both AC and DC voltage input with standard rail mounting. With compact dimensions of 36 * 125 * 100mm, this series also features light-weight, low power consumption, high efficiency, strong anti-interference capabilities, and excellent cost-effectiveness.



Advantages

1.  Wide input voltage range

  • Universal 90 - 264VAC or 127 - 370VDC Input voltage, accepts AC or DC input (dual-use of same terminal)

2.  Compact size

  • 36*125*100mm (W*H*D), weighs only 445g, improving space utilization on the system

3.  High reliability

  • High isolation voltage up to 4000VAC, suitable for users with high voltage requirements

  • Base plate double-sided conformal coating

  • Full protections: output short circuit, over-current, over-voltage, and over-temperature protections



Applications

LI150-20BxxR2S series can be widely used in industrial control, LED, street light control, electric power, security, communication, smart home and other scenes. It provides low-voltage bus power for the control cabinet systems that are DIN rail-mounted internally, such as industrial control, new energy, petrochemical metallurgy, railroad, DC charging pile, and etc.

The products should be used in natural air-cooling environment, if used in a closed environment, please contact our FAE team for more details.

Typical application of LI150-20BxxR2S Series is Industrial control cabinet.jpg



Features

  • Universal 90 - 264VAC or 127 - 370VDC Input voltage

  • Accepts AC or DC input (dual-use of same terminal)

  • Operating temperature range: -20℃ to +60℃

  • High isolation voltage up to 4000VAC

  • Low ripple & noise, high efficiency

  • Output short circuit, over-current, over-voltage, and over-temperature protections

  • Continuous short-circuit protection

  • DIN rail TS-35/7.5 or 15 mountable

  • Ultra slim design: suitable for small chassis and narrow space installation

  • Design refer to UL508, UL61010, EN/BS EN62368 standards



* For detailed information please refer to the related datasheet, product news is for reference only.
