1W/2W Compact size Transformers for Industrial Control - TTF-1T/2T, TTB_M-1T Series
With the increasing demand for cost reduction and efficiency improvement in the industrial sector, most customers will choose the lower-cost self-built solution, using ICs and transformers, to meet the more stringent cost requirements compared to the traditional integrated module power supply which offers higher reliability without the need for secondary design.
MORNSUN has introduced the new industrial-grade SMD package transformers, the TTF-1T/2T and TTB_M-1T series, which can meet the needs of those seeking a cost solution.

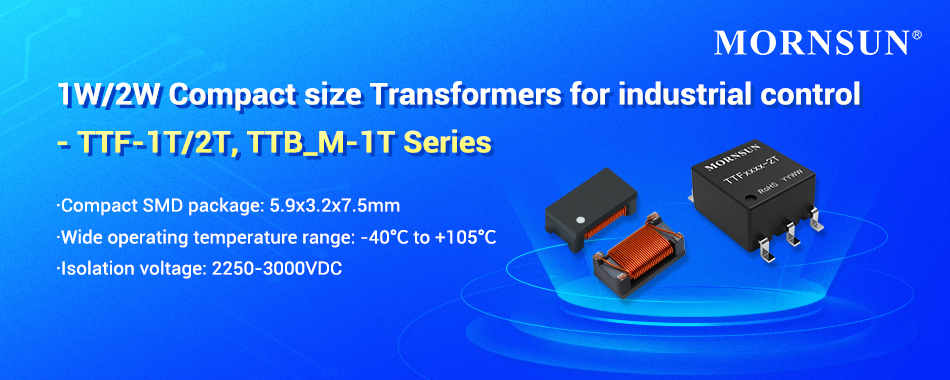

The TTF-1T/2T series is a skeleton-type transformer, a combination of magnetic core and casing, covering power range 1W and 2W. And its isolation voltage is 3000VDC.
The TTB-M-1T series is a self-skeleton-type transformer without the need for a casing, where the wire is winding around the magnetic core to effectively reduce product volume, with an isolation voltage of 2250VDC and a power rating of 1W.
Both the TTF-1T/2T and TTB-M-1T series are fully automatic winding to ensure product consistency. Additionally, these transformer series can be used with MORNSUN’s control ICs to achieve a suitable power supply solution.
Advantages
1. Ultra-small size
TTF-1T/2T series is 12.5*8.7*5.9mm, TTB-M-1T series is 5.9*3.2*2.75mm.
The miniaturized design can effectively reduce the footprint and improve the space utilization.
2. High cost-effective
The TTF-1T/2T and TTB-M-1T series transformers with MORNSUN's ICs can effectively reduce the design cost while meeting the performance of power modules.
Applications
TTF-1T/2T and TTB-M-1T series are suitable for electrically isolated scenarios where the output power requirements do not exceed 1W/2W, such as pure digital circuits, analog acquisition circuits, and data exchange circuit, etc.
Features
Compact SMD package: TTF-1T/2T: 12.5*8.7*5.9mm; TTB-M-1T: 5.9*3.2*2.75m
Isolation voltage: TTF-1T/2T: 3000VDC; TTB-M-1T: 2250VDC
Wide operating temperature range: -40℃ to +105℃
