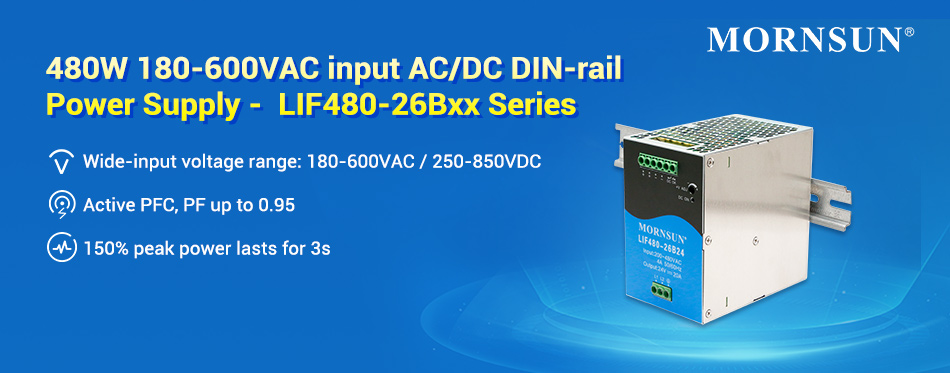

480W 180-600VAC input AC/DC DIN-rail Power Supply - LIF480-26Bxx Series

480W 180-600VAC input AC/DC DIN-rail Power Supply - LIF480-26Bxx Series.jpg

MORNSUN has unveiled a new addition to its LIF family - the LIF480-26Bxx, a 180-600VAC wide-input ranged AC/DC DIN-rail power supply. They are the reliable and affordable power supply to meet the demands of single-phase or 2-phase applications.



Advantages

1.     Ultra-wide input voltage range

180 - 600VAC/250 - 850VDC, AC or DC input at the same terminal, suitable for applications in a harsh input environment, such as wind power, PV, logistics, DC EV charging, and industrial.


2.     High performance

① High efficiency up to 94%, with output short circuit, over-current, over-voltage, and over-temperature protections.

② 150% peak load for 3 seconds, with large transient load capacity.


3.     High reliability

① OVC III (2000m altitude, EN61010)

② 3-year warranty and ultra-long lifespan, MTBF up to 300,000h

③ Safe and reliable with isolation voltage up to 4000VAC

④ Outstanding EMC performance with a solid anti-interference ability to provide stable voltage


4.     Compliance with multiple certifications

Compliance with UL61010-1, UL61010-2-201, UL508 & UL/EN/IEC/BS EN62368-1, EN62477, and IEC60664 standards.



Applications

The power supplies can be widely used in applications with single-phase or two-phase power connections, and applications in a harsh input environment, such as industrial and DC EV charging, credited to the high performance of the stable, anti-interference, and electrical specifications. (When applied to two-phase, may select any two live wires to connect.)

The products should be used in natural air-cooling environment, if used in a closed environment, please contact our FAE team for more details.

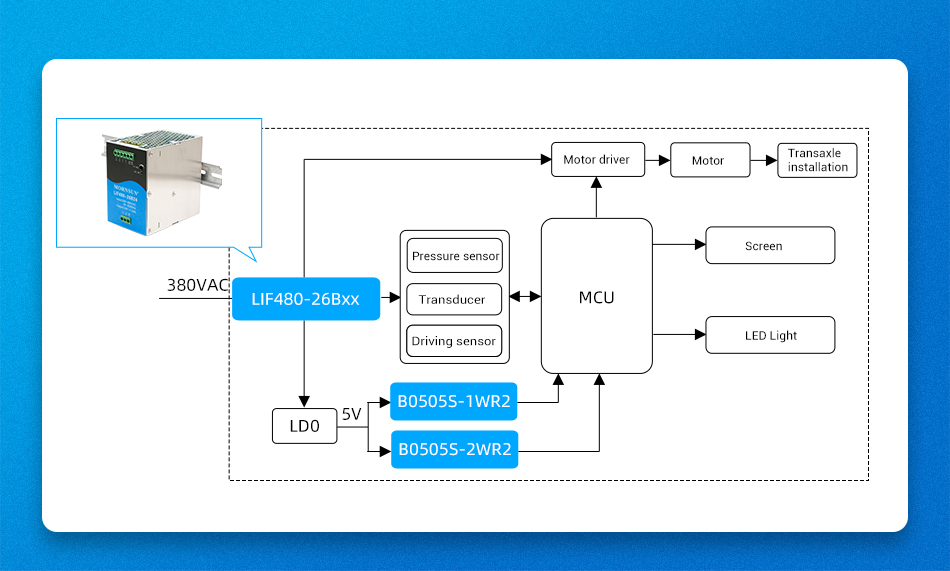

Typical application: Rotary cutter

Typical application: Rotary cutter.jpg



Features

  • Universal Input voltage range: 180-600VAC / 250-850VDC

  • Active PFC, PF up to 0.95

  • Operating temperature range: -40℃ to +85℃ (50℃ @full load)

  • DIN-rail mounting

  • High efficiency, high reliability

  • LED indicator for output status

  • 150% peak power lasts for 3s

  • Output short circuit, over-current, over-voltage, over-temperature protection

  • DC OK function

  • Double-sided conformal coating

  • Operating altitude up to 5000m

  • OVC III (design refer to EN61010 with altitude of 2000m)

  • Design refers to UL508, UL61010, UL/IEC/EN/BS EN62368


* For detailed information please refer to the related datasheet, product news is for reference only.
