Active EMC Filter for DC/DC Converters – FI-B10T(D)-R2

Introduction

Active EMC Filter for DC/DC Converters – FI-B10T(D)-R2.jpg

MORNSUN recently released the new active EMC filter for DC/DC converter in SMD (FI-B10T-R2) and DIP (FI-B10D-R2) packages to help improve the EMI performance. Their maximum operating current is up to 10A.


Advantages

High CM/DM Insertion Loss of FI-B10T-R2: 20dB

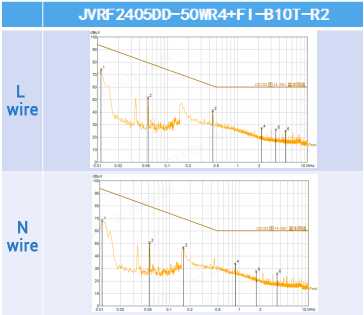

1. Used with MORNSUN DC/DC converter JVRF24_DD-50WR4 series, the power supply EMI performance can be improved to meet the GJB151B military grade (CE102) requirements.

1JVRF24_DD-50WR4 used with filter to meet GJB151B military grade (CE102).jpg

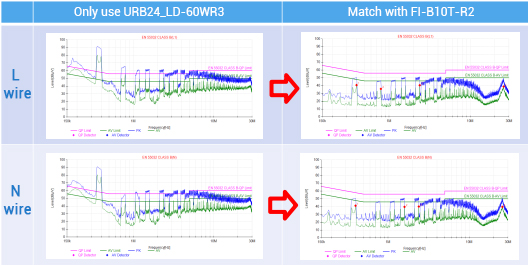

2. Used with MORNSUN DC/DC converter URB24_LD-60WR3 series, the power supply EMI performance can be improved to meet the CISPR32/EN55032 Class B requirements.

URB24_LD-60WR3 used with filter to meet ISPR32/EN55032 Class B.jpg


High CM/DM Insertion Loss of FI-B10D-R2: 20dB

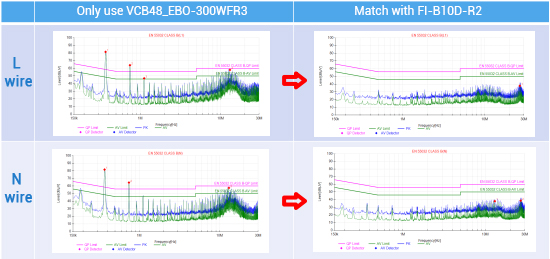

1. Used with MORNSUN DC/DC brick power supply VCB48_EBO-300WFR3 series for Telecom, the power supply EMI performance can be improved.

VCB48_EBO-300WFR3 used with filter EMI performance can be improved.jpg

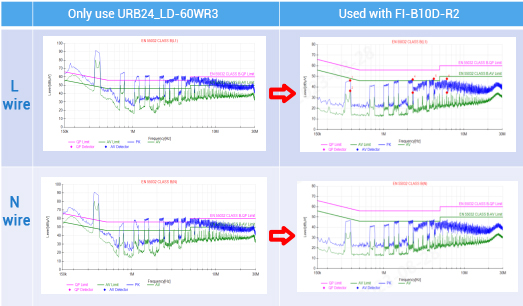

2. Used with MORNSUN DC/DC converter URB24_LD-60WR3 series, the power supply EMI performance can be improved.

URB24_LD-60WR3 used with filter EMI performance can be improved.jpg

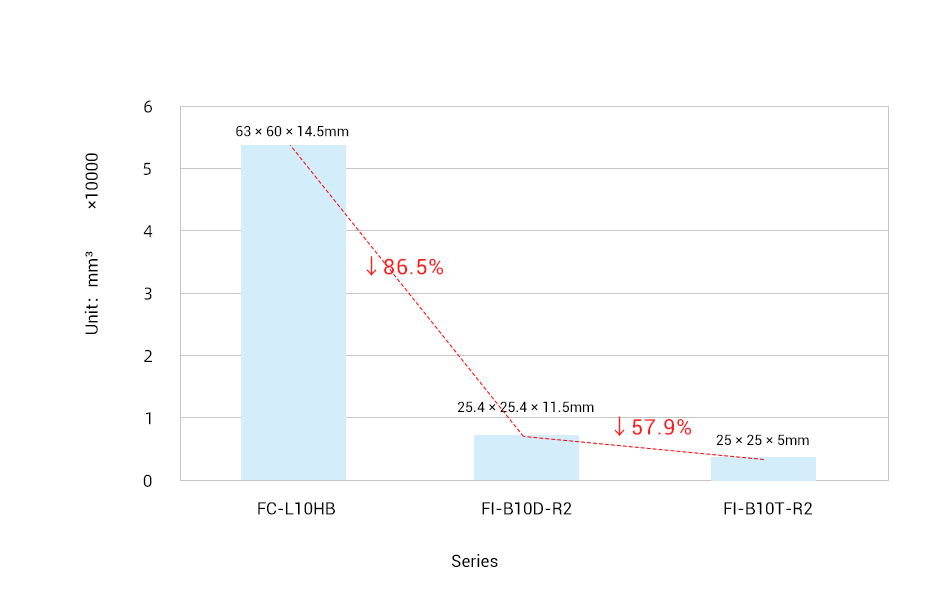

Ultra-small size

1. FI-B10T-R2: 25*25*5mm, volume decreased by more than 80% compared with the same series of products.

FI-B10T-R2: 25*25*5mm.jpg

2. FI-B10D-R2: 25.4*25.4*11.5mm

FI-B10D-R2: 25.4*25.4*11.5mm.jpg



Applications

The active EMC filter FI-B10T(D)-R2 Series can be used with MORNSUN DC/DC power supplies for the applications of industrial control, electric power, instrumentation, communication and other fields.

EMC filter FI-B10T(D)-R2 Series for industrial control.jpg


Features

  • Ultra wide input voltage range: 9 - 80VDC

  • Small size:

    [FI-B10T-R2] 25*25*5mm;

    [FI-B10D-R2] 25.4*25.4*11.5mm

  • Operating temperature range: -40℃ to +105℃

  • Compliance with safety standards: IEC62368

  • Meet 5000m altitude requirement


Recommended solutions

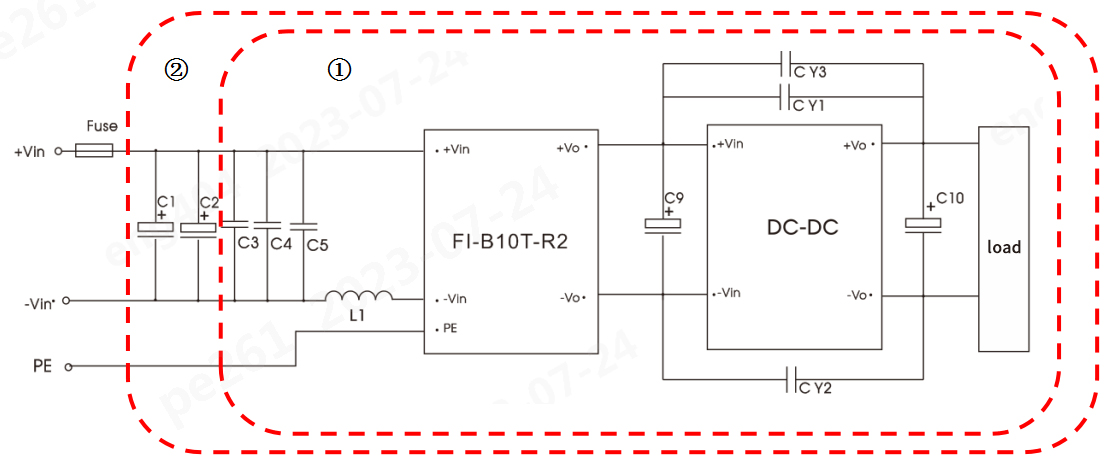

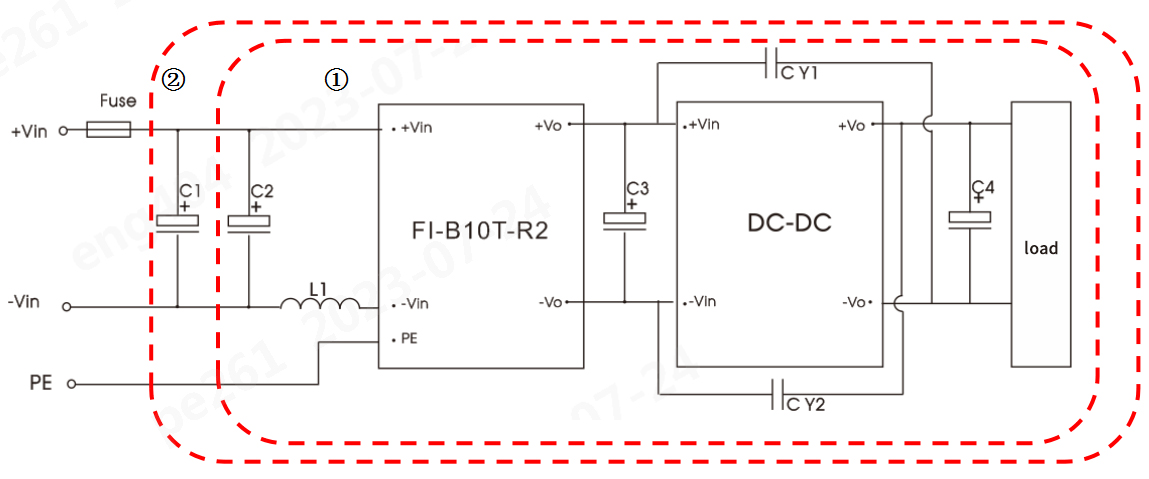

JVRF24_DD-50WR4 is used with FI-B10T-R2 to meet GJB151B CE102.

JVRF24_DD-50WR4 is used with FI-B10T-R2 to meet GJB151B CE102.jpg

URB24_LD-60WR3 is used with FI-B10T-R2 to meet EN55032 CLASSB.

URB24_LD-60WR3 is used with FI-B10T-R2 to meet EN55032 CLASSB.jpg

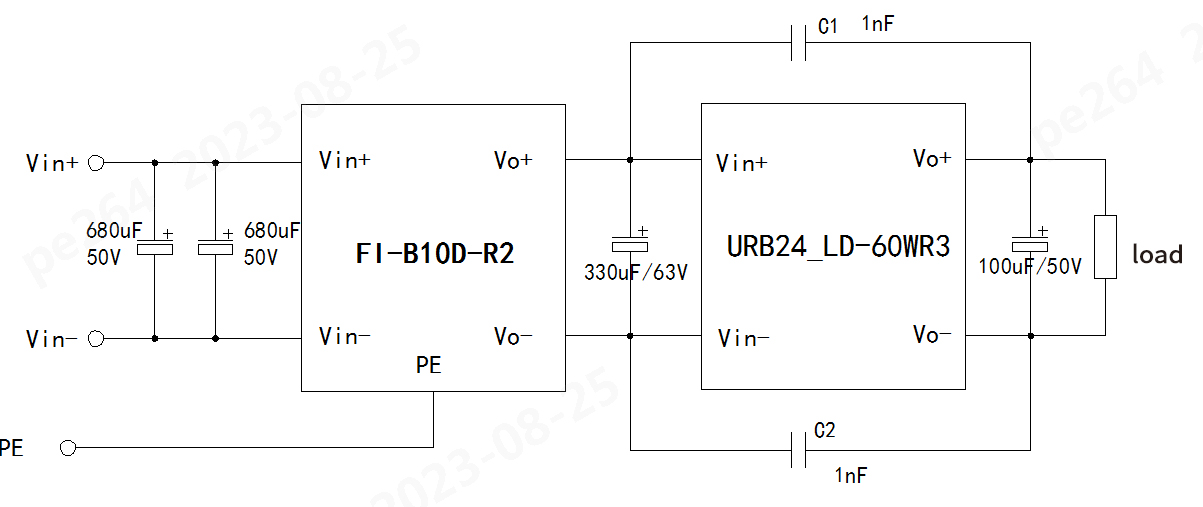

URB24_LD-60WR3 is used with FI-B10D-R2 to meet EN55032 CLASSB.

URB24_LD-60WR3 is used with FI-B10D-R2 to meet EN55032 CLASSB.jpg

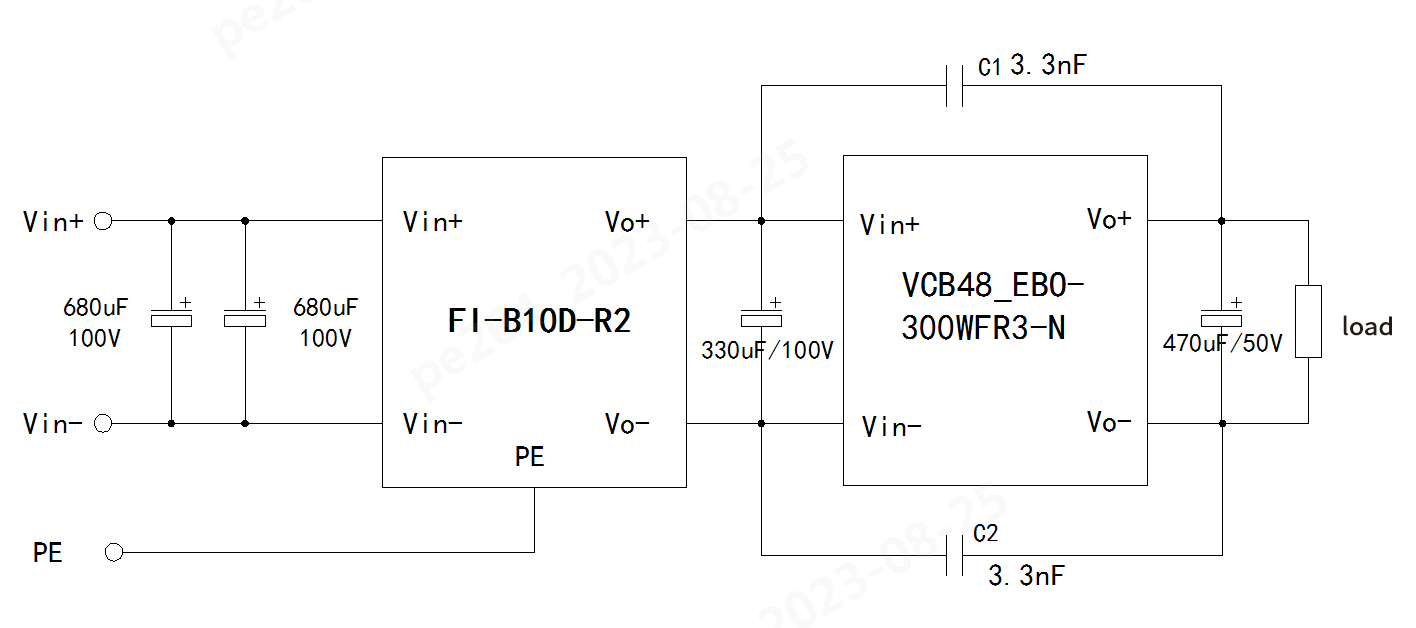

VCB48_EBO-300WFR3-N is used with FI-B10D-R2 to meet EN55032 CLASSB.

VCB48_EBO-300WFR3-N is used with FI-B10D-R2 to meet EN55032 CLASSB.jpg


* For detailed information please refer to the related datasheet, product news is for reference only.
