DC/DC Converter for IGBT/SiC MOSFET Driver - QA_(T)-R3G Series

Introduction

DC/DC Converter for IGBT/SiC MOSFET Driver - QA_(T)-R3G Series.jpg

The range and requirements of semiconductor devices are constantly expanding with the emergence of new energy industry. The semiconductor devices' key component in EV charging and PV SVG systems is IGBT/SiC MOSFET, which requires higher standards for driving solutions.

MORNSUN has introduced the NEW DC/DC converter QA-R3G family special for IGBT/SiC MOSFET Driver.



Advantages

1. Isolation voltage: 5000VAC, reinforced insulation

Based on MORNSUN independent IC design, QA-R3G family’s isolation voltage is up to 5000VAC, higher than the conventional products on the market (3750VAC). And the QA-R3G family can meet the requirements of reinforced insulation, the overall reliability has been greatly improved.


2. Long-term insulation voltage: 1700V

IGBT/SiC MOSFET as the mainstream semiconductor devices, the most voltage classes are 650V/900V/1200V/1700V. Complying with IEC-61800-5-1 standard, QA-R3G family features a long-term insulation voltage (continuous discharge) up to 1700V, which can be used for the IGBT/SiC MOSFET devices that their voltages below 1700V.


3. Performance upgrade compared with QA series


Parameter

QA   Series

QA-R3G   Series

1

Efficiency

80%

86%

2

Ripple

75mVpp

50mVpp

3

Capacitive   Load

220uF

2200uF

4

ESD   performance

±6kV

±8kV

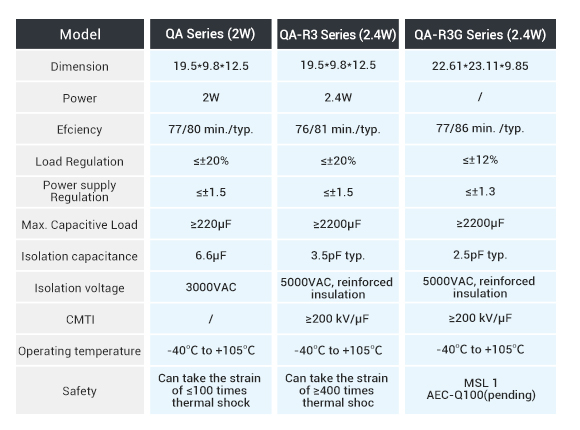

Selection Guide

Selection Guide.jpg


Applications

QA_(T)-R3G Series can be widely used in the IGBT/SiC MOSFET driving EV charging and PV industry solutions.

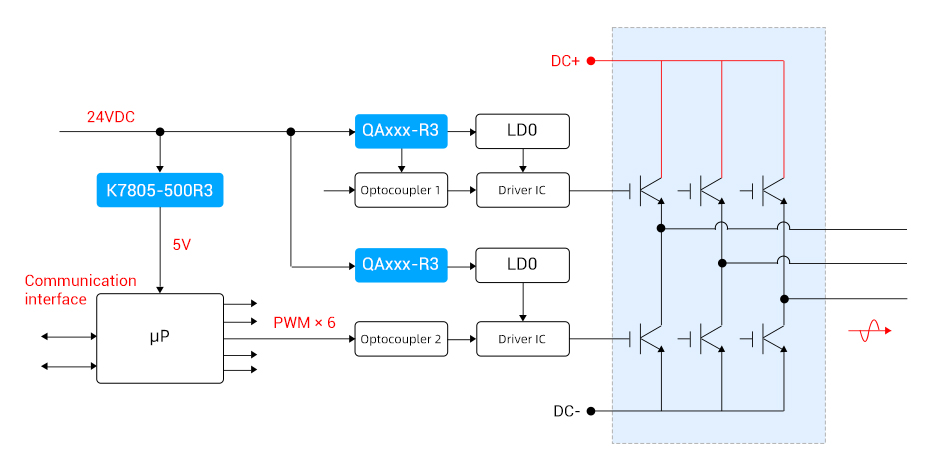

QA_(T)-R3G Series can be widely used in the IGBT/SiC MOSFET driving applications.jpg

Features

QA-R3G Series

  • Ultra-small SIP package

  • Ultra-low isolation capacitance:   3.5pF (typ.)

  • CMTI>200kV/μs

  • Partial discharge: 2500V

  • Isolation voltage: 5000VAC   (reinforced insulation)

  • Max. Capacitive Load: 2200µF

  • Operating temperature range: -40℃ to +105℃

  • Continuous short-circuit   protection

QA_T-R3G Series

  • SMD package

  • Ultra-low isolation capacitance:   2.5pF (typ.)

  • CMTI>200kV/μs

  • Partial discharge: 2500V

  • Isolation voltage: 5000VAC   (reinforced insulation)

  • Max. Capacitive Load: 2200µF

  • Operating temperature range: -40℃ to +105℃

  • Continuous short-circuit   protection

  • High efficiency up to 86%


* For detailed information please refer to the related datasheet, product news is for reference only.
