200W Telecom DC/DC Converter in 1/16-Brick Package - VCB_SBO-200WR3(-N) Series

200W Telecom DC/DC Converter in 1/16-Brick Package - VCB_SBO-200WR3(-N) Series.jpg

MORNSUN launched a 1/16 brick high power density DC/DC converter VCB_SBO-200W(F)R3(-N) series, aiming to support the high-speed development of the 5G industry.



Advantages

1.     Meets the higher efficiency requirements

The 5G data flow is unbalanced and changes with time, which means that the actual load range of the power supply can vary unpredictably from light to full load, so high efficiency is required at both full and light loads, and the stability at different load is also very important.

Mornsun’s telecom power supplies adopt proprietary technology, effectively improving the conversion efficiency under all loads, the average efficiency is more than 90% in the POL of 10%/25%/50%/100%.

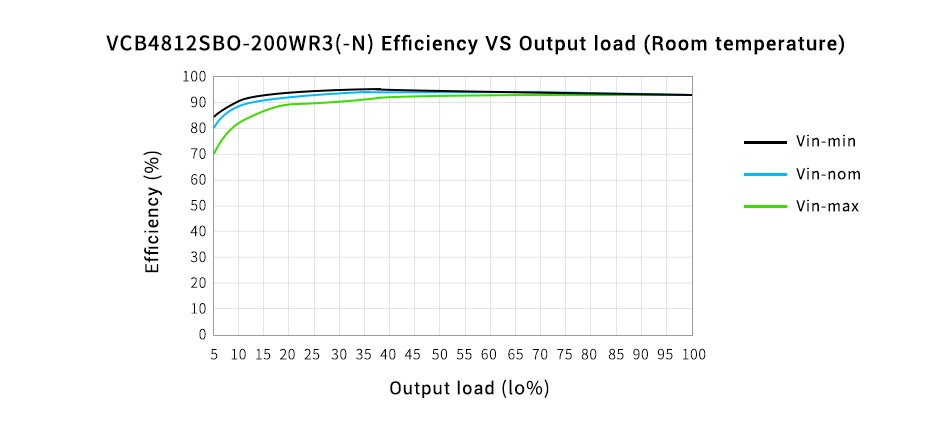

Efficiency VS Output load.jpg


2.     Wide Operating temperature range

Communication equipment operates in temperatures ranging from -40℃ to +70℃. However, the temperature inside may be higher due to the heat produced by power devices. To meet the necessary requirements, a power supply with a wider operating temperature range is needed. The VCB_SBO-200WR3(-N) series is suitable for this purpose, as it has a wide operating temperature range of -40℃ to +85℃.

 Under temperature of 60℃, the model with a heat sink can support a load of up to 80%.

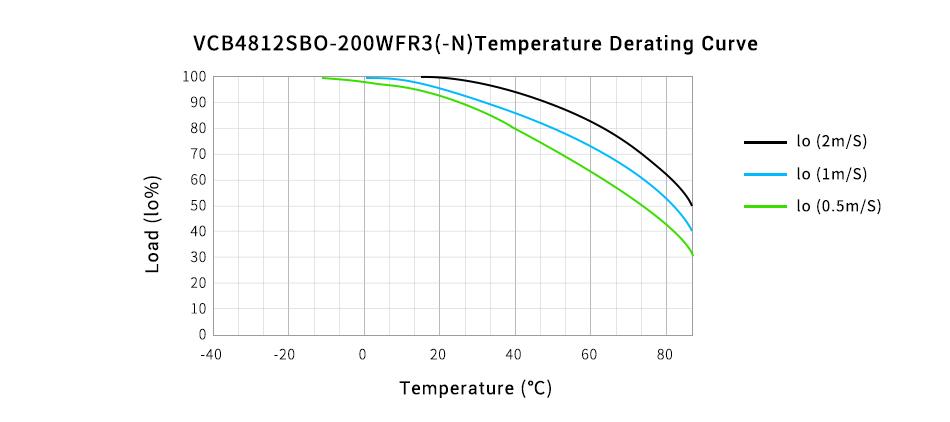

Temperature Derating Curve.jpg


3.     Multiple protection

This series features input under-voltage protection, output over-voltage protection, over-current protection, short-circuit protection, which can effectively prevent the customer's system or equipment from working abnormally and causing unnecessary losses.



Applications

It can be widely used in industrial control, electric power, instrumentation, and telecom applications.

Typical application: Small Cell Sites, Optical module switch system, Relay system

Typical application: Small Cell Sites.jpg



Features

  • Wide input voltage range: 36-75VDC

  • High efficiency up to 94%

  • Isolation voltage up to 1500VDC

  • Operating temperature range: -40℃ to +85℃

  • Input under-voltage protection; Output over-voltage, over-current, and short-circuit protections

  • Industry-standard package: 1/16 brick

  • Meets EN62368, DOSA standards


* For detailed information please refer to the related datasheet, product news is for reference only.
