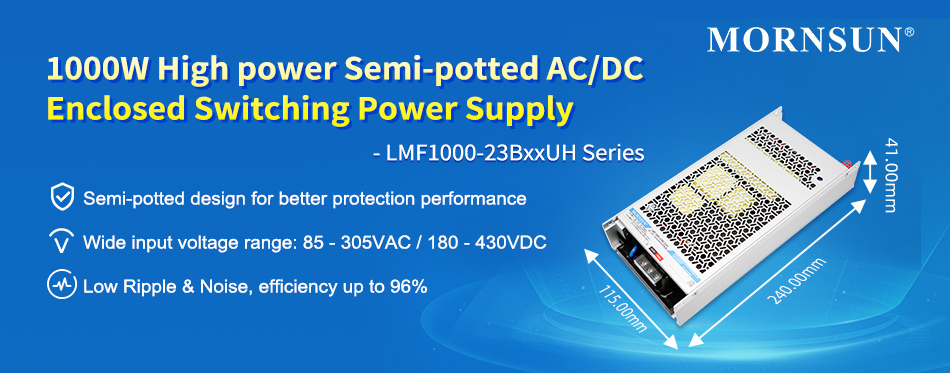

1000W High power Semi-potted AC/DC Enclosed Switching Power Supply - LMF1000-23BxxUH Series

1000W High power Semi-potted AC/DC Enclosed Switching Power Supply - LMF1000-23BxxUH Series.jpg

MORNSUN Power has introduced a new addition to its 305RAC family – the LMF1000-23BxxUH, a semi-potted, fanless AC/DC enclosed switching power supply. It is a high-reliability solution designed to meet the demands of industrial, outdoor applications, and other harsh application environments. It features high efficiency (96%), programming adjustable output voltage, and has a 5-year warranty.



Advantages

1.     Compact size: 240.00×115.00×41.00mm

2.     High efficiency up to 96%

3.     Wide operating temperature range: -40℃ to +85℃

4.     Programming adjustable output voltage

5.     High-reliability

a. Semi-potted & fanless design for better protection performance, and extend the lifespan of power supply

b. CE & RE meet CISPR32/EN55032 CLASS B, ESD meets IEC/EN61000-4-2 Contact ±8KV/Air ±15KV

c. High isolation voltage up to 4000VAC

d. Design refer to IEC/EN/UL62368, 60335/61558, GB4943 standards

e. 5-year warranty



Applications

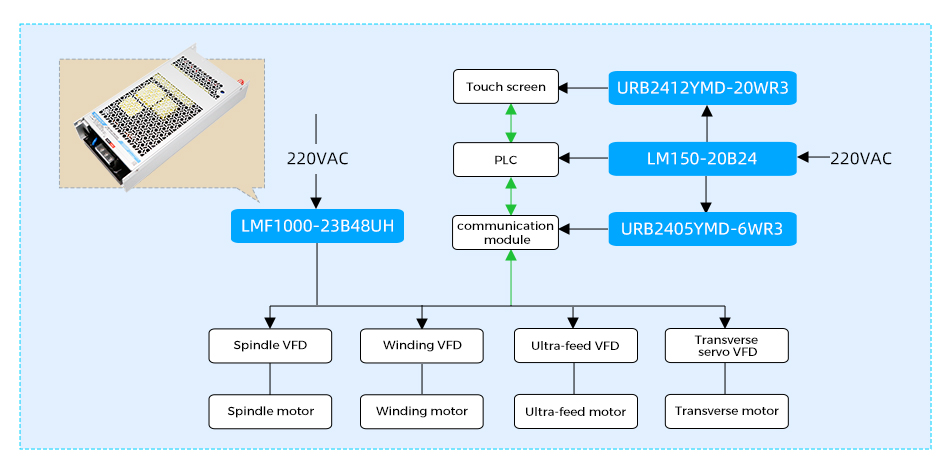

LMF1000-23BxxUH series can be widely used in industrial control, lighting, electric power, security, communication, smart home and other fields.

LMF1000-23BxxUH series can be widely used in industrial control.jpg


Features

  • Universal 85 - 305VAC or 180 - 430VDC input voltage

  • Accepts AC or DC input (dual-use of same terminal)

  • Semi-potted & fanless design

  • Operating temperature range: -40℃ to +85℃

  • Low Ripple & Noise, efficiency up to 96%

  • Active PFC

  • High isolation voltage up to 4000VAC

  • Output short circuit, over-current, over-voltage, over-temperature protections

  • Operating altitude up to 5000m

  • 5-year warranty

  • Design refers to UL/EN/IEC/BS EN62368, EN61558, IEC/EN60335, and GB4943 standards



* For detailed information please refer to the related datasheet, product news is for reference only.
