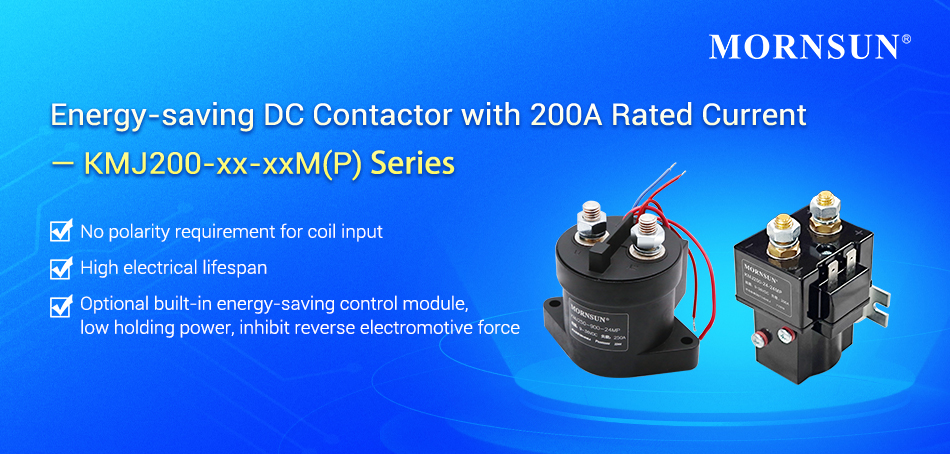

Energy-saving DC Contactor with 200A Rated Current - KMJ200-xx-xxM(P) Series

Energy-saving DC Contactor with 200A Rated Current - KMJ200-xx-xxM(P) Series.jpg

The increasing emphasis on electrification across various industries, including renewable energy, industrial automation, and infrastructure development, has boosted the demand for DC contactors. MORNSUN launched the new energy-saving and reliable low-voltage DC contactor KMJ series.



Advantages

1. High reliability

Contact overheating, contact erosion, and contact sticking will seriously affect the electrical lifespan and reliability of the contactor. The KMJ series used the innovation technology of arc extinguishing, which made it had a longer electrical lifespan and can maintain stable performance under long-term and frequent switching operations,and has higher reliability (tested electrical life: 12,000+ times; mechanical life: 1 million+ times.

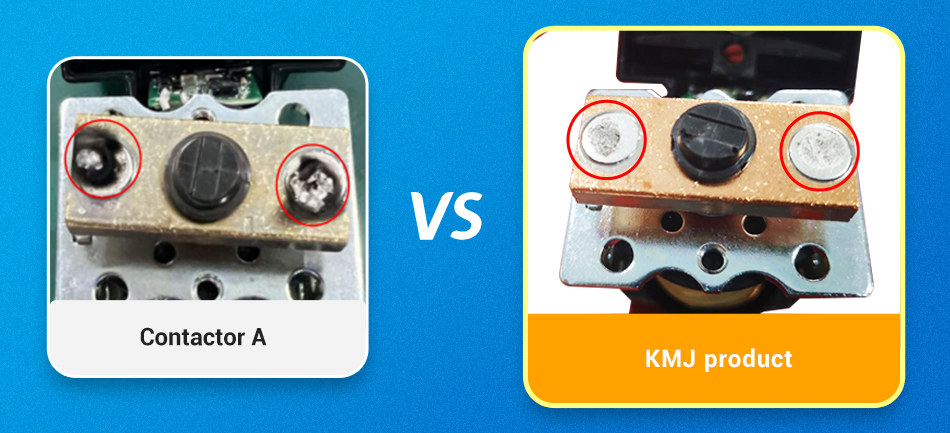

And below is the test comparation of the Contactor A and KMJ product for 1,000 times electrical life. We can see that the contacts of contactor A are severely ablated, while there is no ablation with the KMJ product.

test comparation of the Contactor A and KMJ product for 1,000 times electrical life2.jpg


2. Energy saving and power saving

An optional built-in energy-saving controller reduces coil power consumption (≤2.5W) to save energy and power. If the end system contains many DC contactors, the working time would be longer and more electricity costs could be saved.

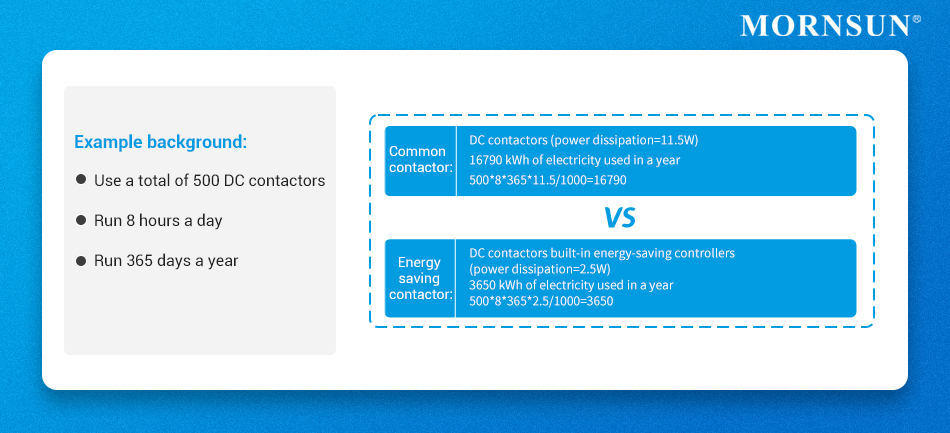

An example of using 500 DC contactors that run 8 hours a day and can save 13,140 kWh of electricity per year if equipped with built-in energy-saving controllers.

An example of using 500 DC contactors that run 8 hours a day and can save 13,140 kWh of electricity per year.jpg

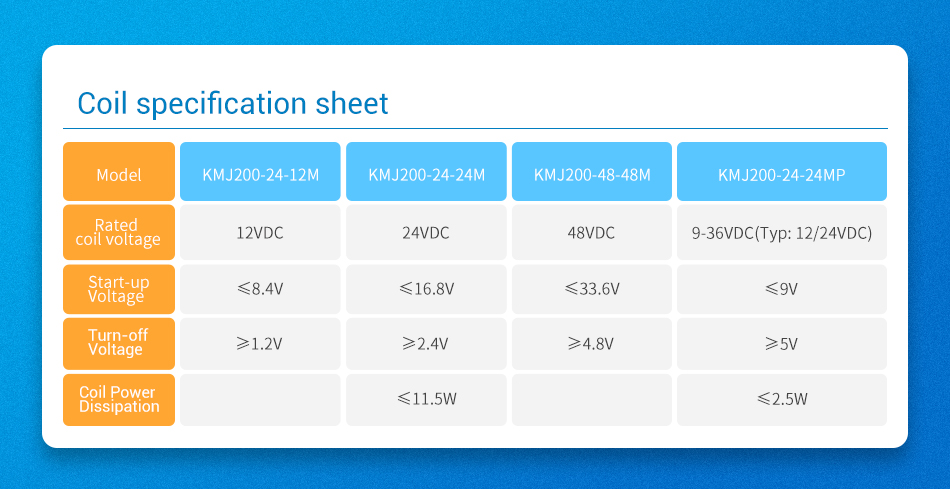

3. Rated coil voltage range: 9-36V

Significantly reduce the customer’s fussy job of product types choosing and multi-model management costs.

Rated coil voltage range: 9-36V.jpg


4. Smaller size and easy for use: 58.1*57*92.7mm



5. Timely technical service

MORNSUN has a professional technical team that can support technical application solutions.



Applications

The modules can be used in telecommunication equipment, construction machinery, electric car, electric forklift, train, ship, uninterruptible power control system, etc.

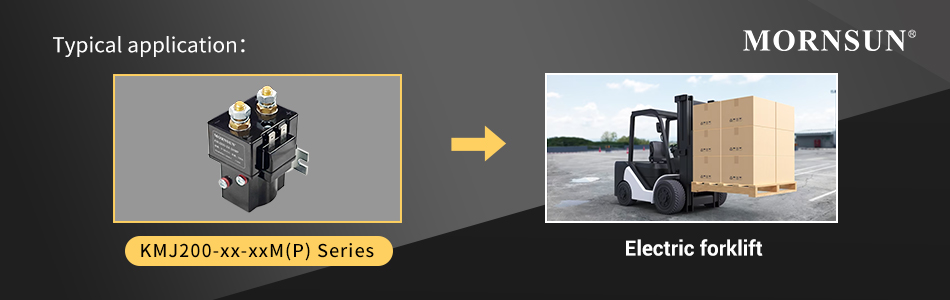

Typical application of KMJ200-xx-xxM(P) Series is Electric forklift.jpg

Installed on the main circuit of the electric forklift, it is mainly used to control the ON/OFF connection of the power supply.


Features

  • Rated current: 200A

  • No polarity requirement for coil input

  • Optional built-in energy-saving control module, low holding power, inhibit reverse electromotive force

  • High electrical lifespan


* For detailed information please refer to the related datasheet, product news is for reference only.
