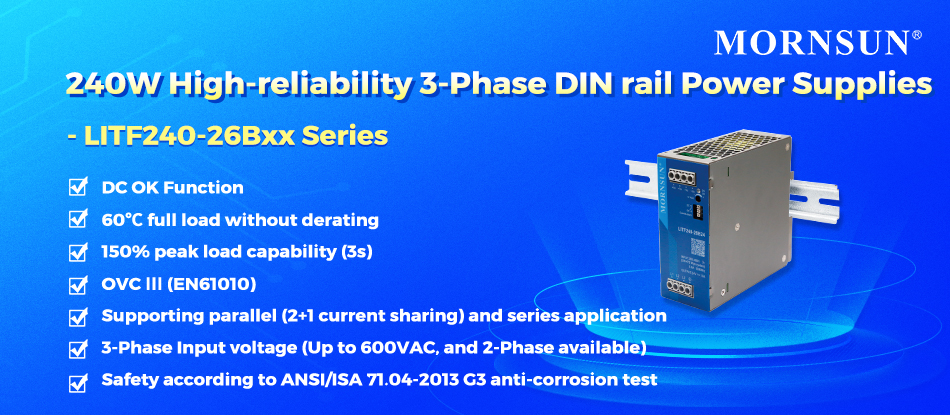

240W High-reliability 3-Phase DIN rail Power Supplies - LITF240-26Bxx Series

240W High-reliability 3-Phase DIN rail Power Supplies - LITF240-26Bxx Series.jpgMORNSUN recently announced the 240W AC/DC DIN Rail power supply LITF240-26Bxx, a new addition to the LITF series. This product offers the output voltages of 24 and 48V. The introduction of this model expands the options available to customers seeking reliable power solutions.


LITF240-26Bxx features high performance, high efficiency, high reliability, low standby power consumption, and high isolation voltage up to 4000VAC. They can be widely used in the control or motor systems of EV Charging station, nuclear power, wind power, petrochemical, metallurgical, and other high-end/ precision manufacturing fields.


Advantages

1. High performance

① Universal 3x320-600VAC or 450-800VDC Input voltage (two-phase or three-phase are available)

② High efficiency of up to 95%

③ Active PFC, PF>0.95

④ Operating temperature range: -40℃ to +85℃, 60℃ @100% load without derating

⑤ 150% peak load capability for 3s, OVC Ⅲ (UL61010)

⑥ Supporting parallel (2+1 current sharing) and series application


2. High reliability

① Comply with ANSI/ISA 71.04-2013 Level G3, can be used in the highly polluted environments

② High isolation voltage up to 4000VAC

③ 3-year warranty, operating altitude up to 5000m

④ Anti-backflow, built-in fuse, and conformal coating protection; Pass the continuous 16-hour grade salt-spray test; stable operated in extremely harsh environments, such as chilly seas or barren desert

⑤ Comply with IEC/EN/UL/BSEN62368, UL/EN61010, UL508 standards

High reliability of Comply with ANSI/ISA 71.04-2013 Level G3.jpg


3. Thoughtful designs

① One-piece screw terminal for a secure installation

② Hexagonal Hole Perforated design to expand the heat dissipation area

③ Attached datasheet in QR code for easy access

④ Highlight LED showing the work status clearly

⑤ Metal buckles at the back to support forward/reverse mounting



4. Systematized production management

① Unique QR code /SN code for product tracking

② Quality indicators, such as defective rate control or standardized look control


Applications

LITF240-26Bxx can be widely used in applications with strict reliability and better performance requirements, such as EV Charging station, nuclear power, wind power, petrochemical, metallurgical, and other high-end/ precision manufacturing fields.


MORNSUN is committed to providing power supplies with high stability, high anti-interference, and high electrical performance for high-end applications.

The products should be used in natural air-cooling environment, if used in a closed environment, please get in touch with our FAE team.

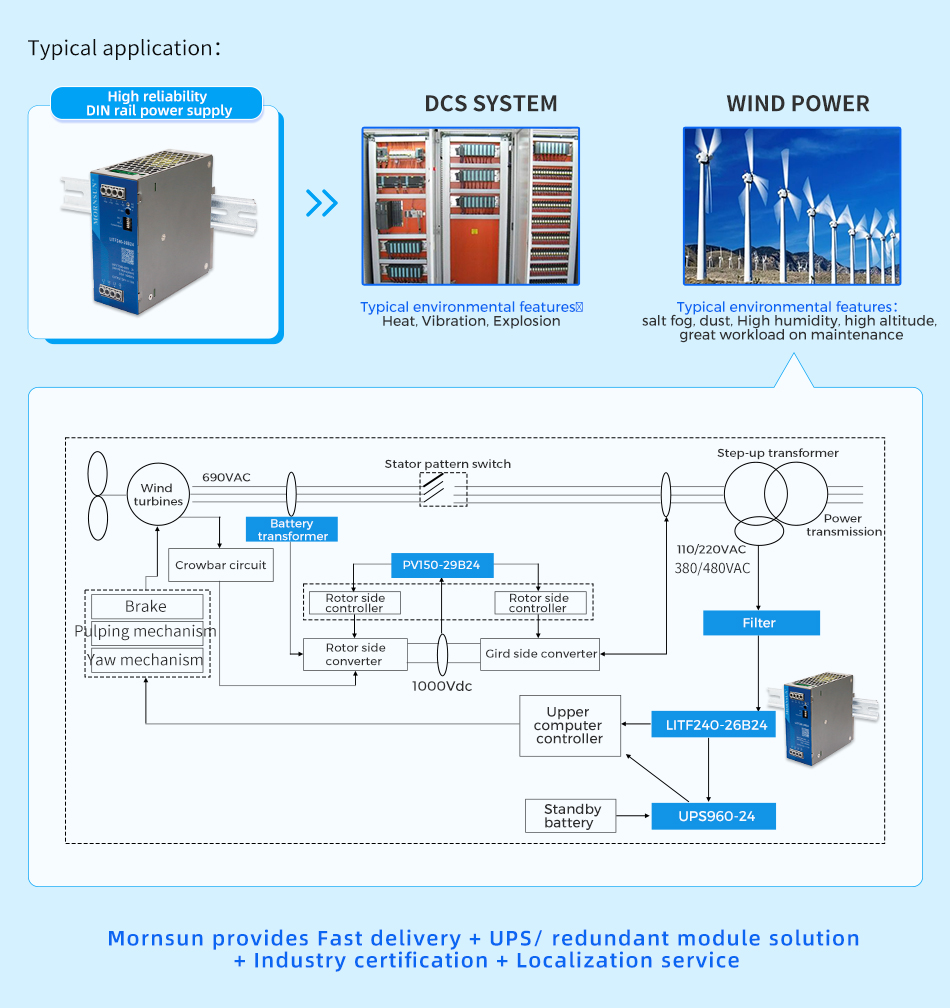

LITF240-26Bxx can be widely used in high-end applications.jpg


Features

  • Wide input voltage range: 3x320-600VAC/450 - 800VDC

  • Active PFC, PF>0.95 (Typ.)

  • Operating temperature range: -40℃ to +85℃, 60℃ @100% load without derating

  • DIN rail mounting

  • High efficiency, high reliability

  • LED indicator for output status

  • 150% peak power lasts for 3s

  • Output short circuit protection, Output short circuit, over current, over voltage, over temperature protection

  • Supporting parallel (2+1 current sharing) and series applications

  • DC OK Function, anti-backflow Function

  • Conformal coating protection on each PCB side, Salt-spray proof

  • Operating altitude up to 5000m

  • OVC III (design refer to EN61010)

  • Safety according to ANSI/ISA 71.04-2013 G3 anti-corrosion test

  • Comply with IEC/EN/UL/BSEN62368, UL/EN61010, UL508 standards


* For detailed information please refer to the related datasheet, product news is for reference only.
