800W/1300W DC/DC Converter with Built-in PMBus Interface - VCB_QBO-xxWR3A-N Series

800W/1300W DC/DC Converter with Built-in PMBus Interface - VCB_QBO-xxWR3A-N Series.jpg

MORNSUN has recently introduced two new series of high-power telecom power supplies with PMbus interface, VCB-QBO-800WR3A-N, and VCB-QBO-1300WR3A-N. They are designed to meet the power supply needs of customers in telecommunication base stations, data centers, industrial control, and other industries.


VCB_QBO-xxWR3A-N series has excellent performance, with efficiency up to 96.6%, ripple noise as low as 100mV, wide operating temperature range from -40 to 85℃, and stable temperature performance at even -40℃ or 85℃. This series of products supports PMBus Interface and has DLS and ACS optional. At the same time, the products satisfy the IEC/UL/EN62368 and international general DOSA standards.


Advantages

1. High and stable efficiency curve

The 5G data flow is unbalanced and changes with time, which means that the actual load range of the power supply can vary unpredictably from light to full load, so high efficiency is required at both full and light loads.

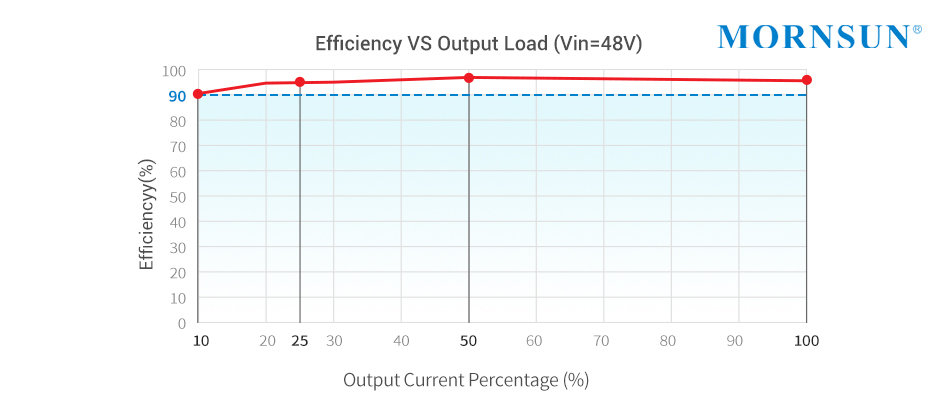

Mornsun’s telecom power supplies adopt frequency conversion and active clamp technology, effectively improving the conversion efficiency under all loads, the average efficiency is greater than 90% in the POL of 10%/25%/50%/100%. VCB_QBO-xxWR3A-N's efficiency up to 96.6% @ full load.

High and stable efficiency curve.jpg


2. Intelligent and convenient with PMbus interface

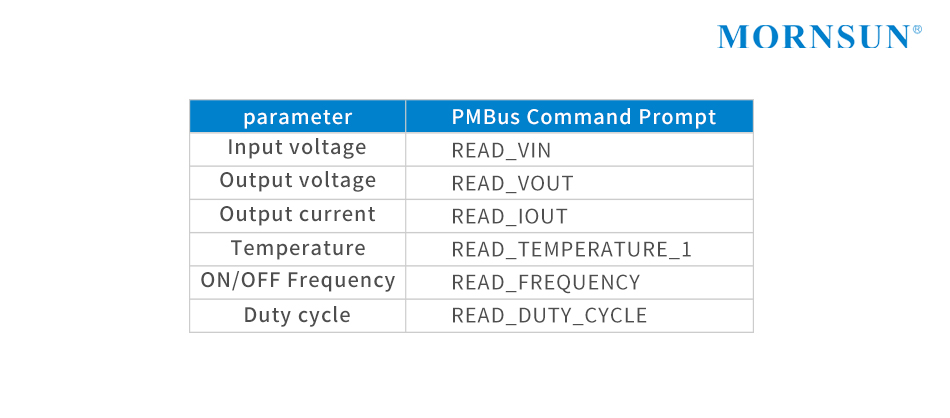

The series comes with a PMBus interface, by matching with the upper computer system, it can realize programming, configuration, control, output voltage adjustment, protection threshold adjustment as well as parameter and malfunction monitoring, etc in a graphical user interface. This product offers over 60 different parameters for reading or adjustment, along with a wide range of over 100 operational commands. Its user-friendly interface ensures ease and convenience in operation, for details, please refer to datasheet. Furthermore, this system allows for intelligent parameter re-design, as well as responsive handling of observed parameter and malfunction. (A few examples of the monitoring parameters are as follows)

2.Intelligent and convenient with PMbus interface.jpg

3. DLS or ACS current sharing models are available

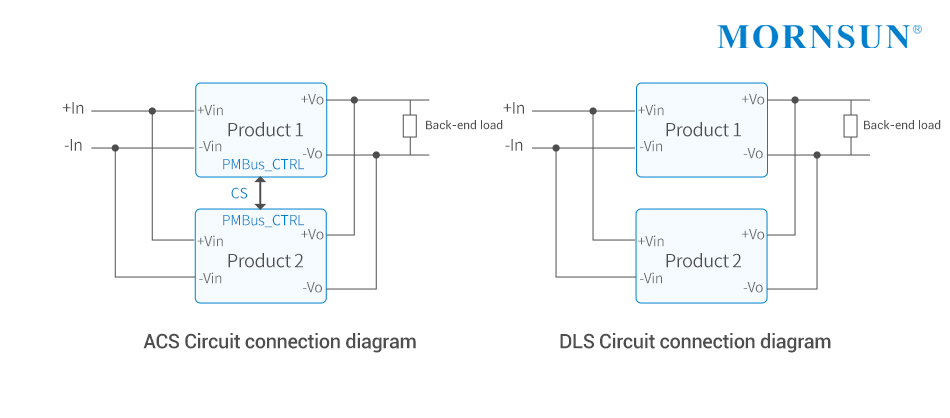

When upgrading the communication system or increasing its capacity, it is usually necessary to use multiple power supplies in parallel to shunt the output current. This series offers two options for current sharing: ACS and DLS. In ACS mode, the output ±Vo and PMBus_CTRL pins of each product must be connected in parallel. This mode is suitable for applications that require high current equalization accuracy and output voltage. DLS mode, on the other hand, doesn't require PMbus and only needs the output ±Vo pins to be connected in parallel. This mode is ideal for situations that don't require digital communication and is more convenient for certain applications.

DLS or ACS current sharing models are available.jpg

4. Full protection

This series includes a no-load capacitive load repeated startup anti-reverse design. It also features input under-voltage protection, over-voltage protection, over-current protection, over-temperature protection, short-circuit protection, and other protective functions. These features can effectively prevent the customer's system or equipment from working abnormally and causing unnecessary losses.

In addition, based on PMbus and the upper computer system, the protection function parameter thresholds can be freely adjusted, with a higher degree of flexibility, to meet the needs of customers in different application scenarios.


Applications

VCB_QBO-xxWR3A-N is a great fit for BBU and AAU modules in telecommunication base station equipment. The product is specifically designed to meet the needs of scenarios that require digital communication and reliability, providing high stability, high performance, and high-reliability quality power supply for them.

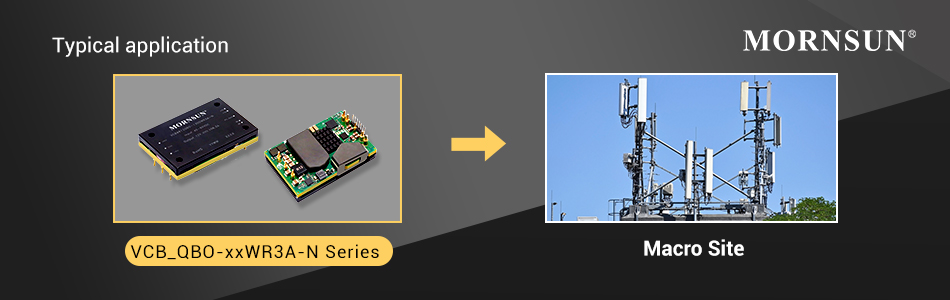

Typical application of VCB Series is Macro Site.jpg


Features

  • Wide input voltage range: 40-60VDC (800W), 45-60VDC (1300W)

  • High efficiency up to 96.6%

  • Functional insulation, isolation voltage up to 1500VDC

  • Operating ambient temperature range: -40℃ to +85℃

  • Input under-voltage protection; Output over-voltage, over-current, short-circuit, and over-temperature protections

  • Droop load sharing (DLS) or Active current Sharing (ACS) models are available

  • Built-in PMBus interface

  • Industry-standard package: 1/4 brick

  • Meets EN62368, DOSA standards


* For detailed information please refer to the related datasheet, product news is for reference only.
