60W Ultra-thin Plastic DIN Rail Power Supply LI60-20BxxPU Series

60W Ultra-thin Plastic DIN Rail Power Supply LI60-20BxxPU Series.jpg

MORNSUN's new ultra-thin plastic DIN rail power supply series, LI60-20BxxPU, offers a wide range of output voltages, including 05/12/24/48 V. With a universal full-range AC input and high isolation voltage of 4,000 VAC, it also features a constant current limiting function that guarantees safe and stable power supply. Plus, it comes with a 3-year warranty for peace of mind and long-term reliability.


Advantages

Wide input voltage range

85 - 264VAC/120 - 370VDC, AC or DC input at the same terminal

It can take power directly from the system bus, simplifying the layout of the system wiring


High performance

Efficiency up to 88%, The weight is only 80% of the similar products

Operating temperature range: -25℃ to +70℃

Output short circuit, over-current, over-voltage protections

Constant current limiting function solves the problem of capacitive loads such as inductive loads and motors.


Ultra-thin design

36.5*90*100mm, 8.7% smaller than similar products, Standard DIN rail mounting, an be directly replaced and increase space utilization


High reliability

Isolated voltage of 4000VAC for high withstand voltage requirements

EMI: CE & RE meets CISPR32/EN55032 CLASS B

Design refers to UL/EN/IEC/BS EN62368, UL61010, and UL508 standards



Applications

The products can be widely used in the fields of industrial control equipment, machinery, rail transit, and other industrial equipment in a variety of harsh environments.

The products should be used in a natural air cooling environment, if used in a closed environment, please contact our FAE team.

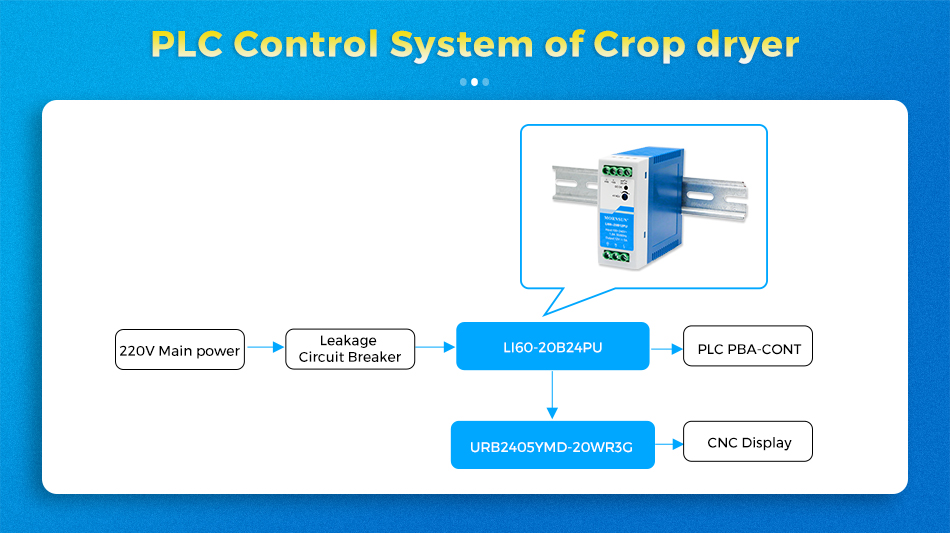

PLC Control System of Crop dryer.jpg



Features

  • Universal Input voltage: 85 - 264VAC or 120 - 370VDC

  • Accepts AC or DC input (dual-use of same terminal)

  • Operating temperature range: -25℃ to +70℃

  • Efficiency up to 88%

  • High isolation voltage up to 4000VAC

  • DC OK function

  • Operating altitude up to 5000m

  • Output short circuit, over-current, over-voltage protections

  • DIN rail TS35X7.5/ TS35X15 mountable

  • Design refer to UL/EN/IEC/BS EN62368, UL61010, UL508 standards


* For detailed information please refer to the related datasheet, product news is for reference only.
