The Perfect Blend of Performance and Affordability in a 480W Three-Phase DIN Rail Power Supply LITF480-26BxxS Series

The Perfect Blend of Performance and Affordability in a 480W Three-Phase DIN Rail Power Supply LITF480-26BxxS Series.jpg

MORNSUN provides the most suitable DIN rail power supplies for different application scenarios. The standard LI series with plastic and metal casings can be used in general industrial environments, while the 120-960W high-reliability LIMF, LIHF, and LITF series are suitable for high-end applications. For stringent operating conditions and also require cost consideration, it is recommended to choose the 480W three-phase DIN rail power supply - LITF480-26BxxS.

By eliminating some non-essential features, such as RS485 communication function, from the LITF480-26Bxx, this NEW series strikes a balance between performance and cost, offering a reliable and affordable solution.


Advantages

Wide input voltage range: 3 x 320-550VAC (transient 600VAC) or 450-800VDC (transient 845VDC)


High performance

① High efficiency of up to 95%, Active PFC, PF up to 0.95

Operating temperature range: -40℃ to +70℃ (full load @50℃), suitable for the complex temperature environment

150% peak power lasts for 3s, and supports the starting of heavy loads such as DC motors or capacitive loads.

③ Output short circuit, over-current, over-voltage, over-temperature protections


High reliability

Conformal coating protection on each PCB side, provides protection in dust or outdoor applications

Isolation voltage of 4000VAC, provides protection in applications with high voltage requirements

③ The heat dissipation structure is a dual-channel design of cold and hot separation to achieve better heat dissipation and higher reliability

④ Outstanding EMC performance

EMI

CE/RE

CISPR32/EN55032 CLASSB

EMS

EFT (input)

IEC/EN61000-4-4 ±4KV


EFT (output)

IEC/EN61000-4-4 ±2KV


EFT (DC OK)

IEC/EN61000-4-4 ±1KV


Surge(input)

IEC/EN61000-4-5 line to line ±2KV/line to PE ±4KV


Surge(output)

IEC/EN61000-4-5 Vo+ to Vo- ±500V/Vo+/Vo- to PE ±1KV


Surge(DC OK)

IEC/EN61000-4-5 DC OK to PE ±1KV


ESD

IEC/EN61000-4-2 Contact ±8KV/Air ±15KV

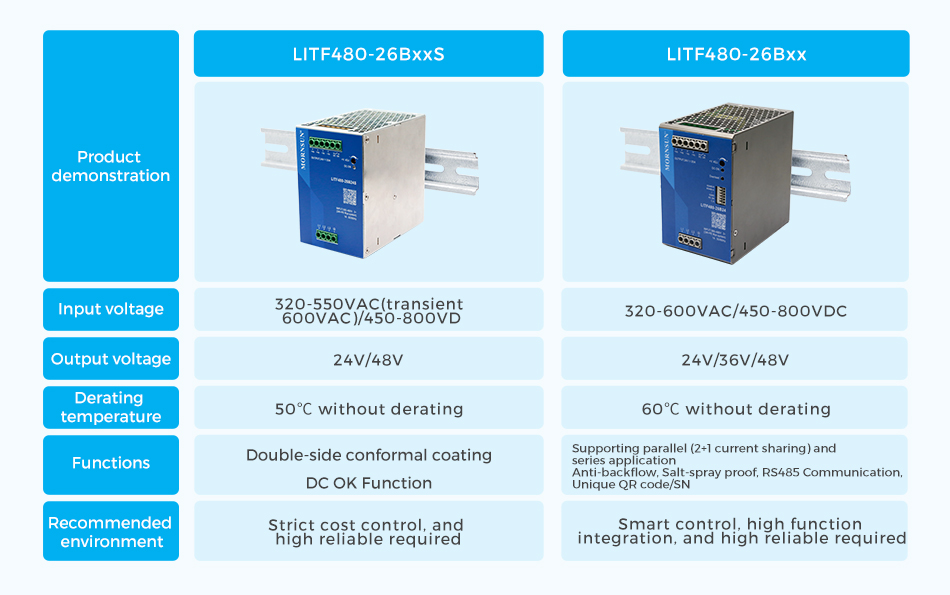

Comparison of parameters

Comparison of parameters.jpg


Applications

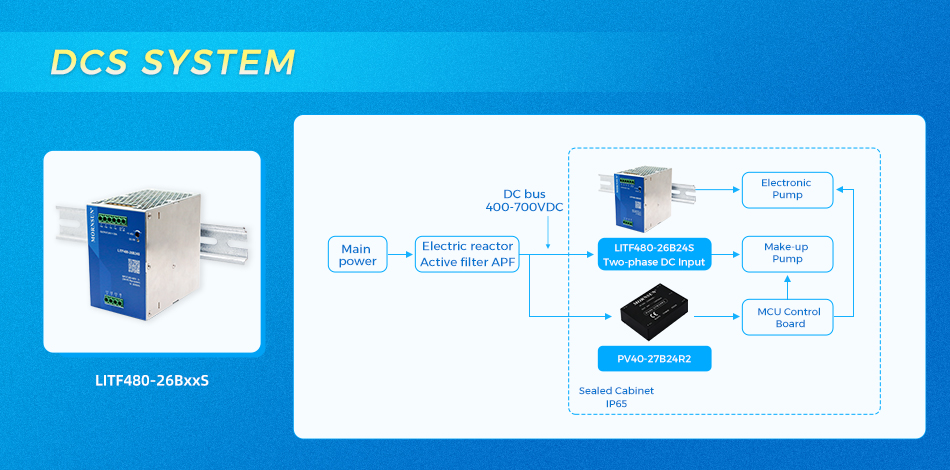

The LITF480-26BxxS is a versatile and compact solution for various applications that have limited space. It is ideal for use in industrial control, LED, street lamp control, electric power systems, security systems, and communication devices, among others. Its high electrical performance makes it an excellent choice for any application that requires a stable and efficient power source.

LITF480-26BxxS is ideal for use in industrial control.jpg



Features

  • Universal Input voltage: 3x320-550VAC or 450-800VDC

  • Three-phase input (two or three-phase are available)

  • Input withstand 3x600VAC/5s

  • Active PFC, PF up to 0.95

  • Operating temperature range: -40℃ to +70℃ (50℃ full load)

  • Standard DIN-Rail mounting

  • High efficiency, high reliability

  • LED indicator for output status

  • 150% peak power lasts for 3s

  • Output short circuit, over-current, over-voltage, over-temperature protections

  • DC OK function

  • Double-sided conformal coating

  • Operating altitude up to 5000m

  • OVC III, 2000m altitude (design refer to EN61010)

  • Design refer to UL508, UL61010, UL/IEC62368 standards


* For detailed information please refer to the related datasheet, product news is for reference only.
