960W Single-phase DIN Rail Power Supply - LIF960-22Bxx Series

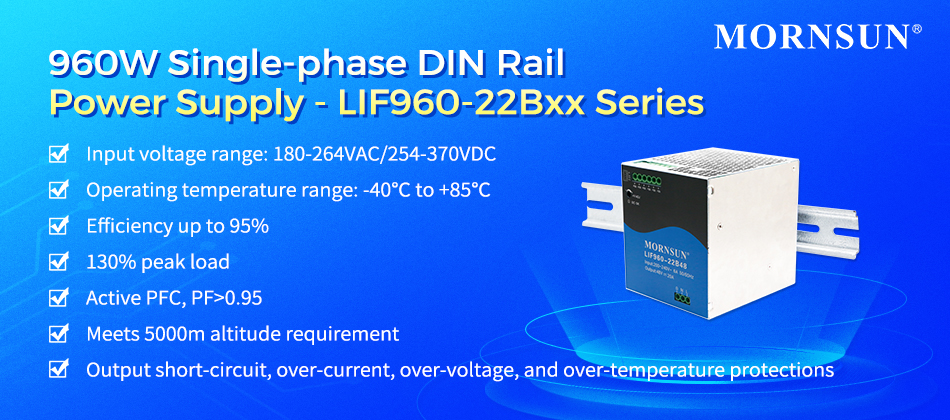

960W Single-phase DIN Rail Power Supply - LIF960-22Bxx Series.jpg

MORNSUN introduced the LIF960-22Bxx, which is a metal case DIN rail power supply from LIF series. This new addition expands power range of LIF series from 120-480W to 960W.



Advantages

Wide input voltage range

180-264VAC/254 - 370VDC, withstand 305VAC surge input for 5 second, AC or DC input at the same terminal


Powerful performance

  • Efficiency up to 95%, built-in active PFC, PF>0.95

  • Operating temperature range: -40℃ to +85℃, full load @50℃, suitable for the complex temperature environment

  • 130% peak load for 3s

  • Current sharing up to 3840W(3+1)

  • DC OK function

  • Output short circuit, over-current, over-voltage, and over-temperature protections


Compact size

  • Dimension: 110*124*127mm, occupying only 84% of the volume compared to similar products in the market

  • Weight: 1680g, weighing only 68% of similar products in the market (2470g)


High reliability

  • Double-sided conformal coating

  • Isolation voltage 4000VAC

  • Utilizes a cold-hot separation design for better heat dissipation and higher reliability

  • EMI: CE & RE meets CISPR32 EN55032 CLASS B

  • EMS:

EFT meets IEC/EN61000-4-4 ±4KV

Surge meets IEC/EN61000-4-5 line to line ±2KV/line to ground ±4KV

EDS meets IEC/EN61000-4-2 Contact ±4KV/Air ±8KV

  • Safety according to IEC/EN/UL/BS EN62368, UL61010, UL508, GB4943



Applications

LIF960 series is a power supply with high stability, high anti-interference, and high electrical performance. It can be widely used in the fields in a harsh input environment, such as industrial control, LED, street lamp control, electric power, security, and telecommunication, etc.

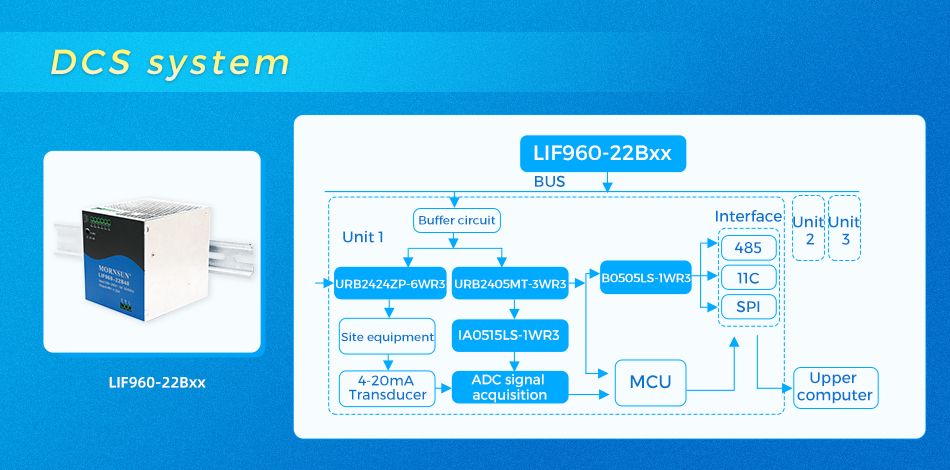

LIF960 series for DCS system.jpg



Features

  • Universal 180 - 264VAC or 254 - 370VDC Input voltage

  • Accepts AC or DC input (dual-use of same terminal)

  • Operating temperature range: -40℃ to +85℃

  • Efficiency up to 95%

  • 130% peak load

  • Active PFC, PF>0.95

  • DC OK function

  • Double-sided conformal coating

  • Operating altitude up to 5000m

  • Output short circuit, over-current, over-voltage, and over-temperature protections

  • Safety according to IEC/EN/UL/BS EN62368, UL61010, UL508, GB4943


* For detailed information please refer to the related datasheet, product news is for reference only.
