18-36VDC Wide input and regulated output DC/DC converter - VRF24_HB-500WR3-N Series

18-36VDC Wide input and regulated output DC/DC converter - VRF24_HB-500WR3-N Series.jpg

MORNSUN launches 500W wide-input DC/DC converter VRF24_HB-500WR3-N series to meet the increasing demand for high-power DC/DC power supply in industrial control, electricity, and railway applications.

The 500W 1/2 brick DC/DC converter VRF24_HB-500WR3-N series features high efficiency up to 94%, an ultra-wide operating temperature range of -40℃ to +100℃, a high isolation voltage, complete protections, and support paralleled current-sharing.


Advantages

Excellent temperature derating curve

The performance of a power supply in terms of temperature has a great impact on system stability. The operating temperature requirement for most switching power supplies is generally ranging from -40℃ to +70℃.


VRF24_HB-500WR3 offers full power with a baseplate temperature up to 80°C without derating, and a baseplate operating temperature up to +100°C, effectively simplifying the thermal design of the whole system.

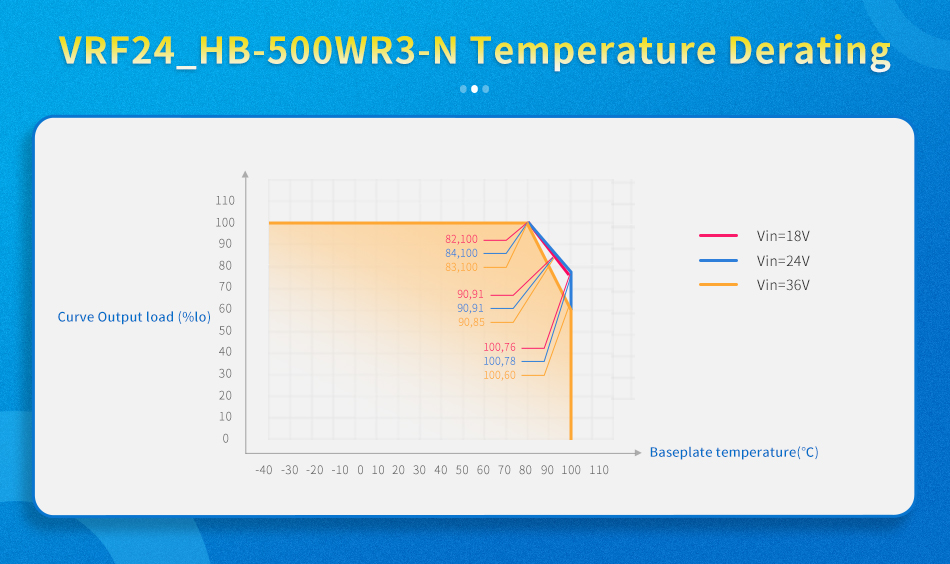

Its temperature derating curve is shown in the following figure.

VRF24_HB-500WR3-N temperature derating curve.jpg



Outstanding comprehensive performance

VRF24_HB-500WR3 features paralleled current-sharing function, the maximum number of parallel connections is 4, the power in parallel can reach up to 2000w, and the paralleled output voltage still meets the accuracy of ±1% (typ.)

In addition, VRF24_HB-500WR3 also has the advantages of 2250VDC high isolation voltage, output efficiency of 94%, ripple and noise as low as 220mV (Max), etc. At the same time, it has input under-voltage, over-voltage, over-current, over-temperature, and short-circuit protections, which can effectively reduce the risk of loss caused by abnormal operation of the system or equipment.



Applications

VRF24_HB-500WR3 is suitable for high-power applications with high-reliability requirements, such as industrial control, communication, electric power, rail transit, and other fields. MORNSUN provides high-quality power supplies with high stability, high performance, and high reliability for these industries.

VRF24_HB-500WR3 is suitable for high-power applications with high-reliability requirements.jpg



Features

  • Wide 2:1 input voltage range

  • High efficiency up to 94%

  • Isolation voltage 2250 VDC

  • Input under-voltage protection, output short-circuit, over-current, over-voltage, and over-temperature protections

  • Paralleled current-sharing function

  • Baseplate temperature range: -40℃ to +100℃

  • Industry-standard 1/2 brick



Selection Guide

Series

Power

Input Voltage

Output Voltage

Outputs

Isolation

Package

Dimension

VRF2412HB-500WR3-N

500

18-36

12

1

2250VDC

1/2砖

61.00 × 57.90 × 12.70 mm

VRF2415HB-500WR3-N

500

18-36

15

1

2250VDC

1/2砖

61.00 × 57.90 × 12.70 mm

VRF2424HB-500WR3-N

500

18-36

24

1

2250VDC

1/2砖

61.00 × 57.90 × 12.70 mm

VRF2428HB-500WR3-N

500

18-36

28

1

2250VDC

1/2砖

61.00 × 57.90 × 12.70 mm



* For detailed information please refer to the related datasheet, product news is for reference only.
