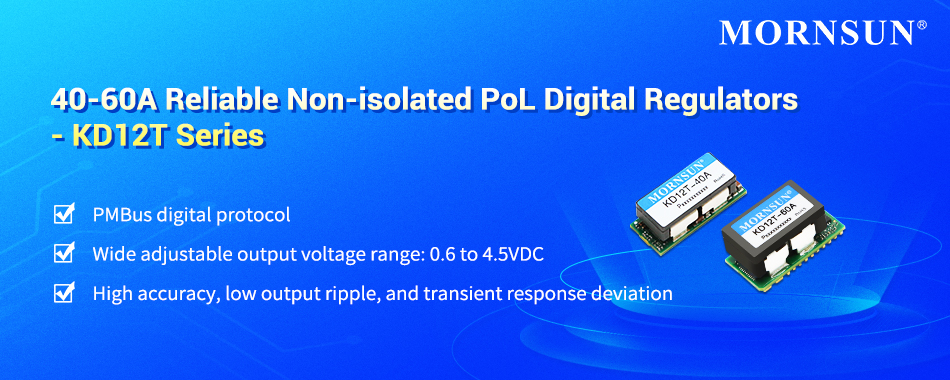

40-60A Reliable Non-isolated PoL Digital Regulators - KD12T Series

40-60A Reliable Non-isolated PoL Digital Regulators - KD12T Series.jpg

As communications equipment continuously becomes smaller, there is an increasing need for PoL power supplies to be miniaturized and to deliver high power. KD12T-40A & KD12T-60A are the small-size, high-current digital PoL DC/DC converters developed by MORNSUN.

A single module can provide up to 60A output current, and two modules can be connected in parallel up to 120A. The output voltage is precisely adjustable in the range of 0.6-4.5V to meet a wide range of PoL power requirements.


Advantages

1. PMBus digital protocol

Output voltage is programmable via an external resistor divider or PMBus command, without additional peripheral components


2. Wide adjustable output voltage range

Output voltage range up to 0.6-4.5V, can be flexibly applied in the power distributed systems, such as ASIC, FPGA, DSP, CPU/GPU, and RAM, etc.


3. Great performance

  • High output voltage deviation: ±2mV

  • Low output ripple and noise: 4mV

  • Fast load transient response: 18mV


4. Multiple protections

  • Input undervoltage protection

  • Output over/under voltage protections

  • Output over current, over temperature, short circuit protections



Applications

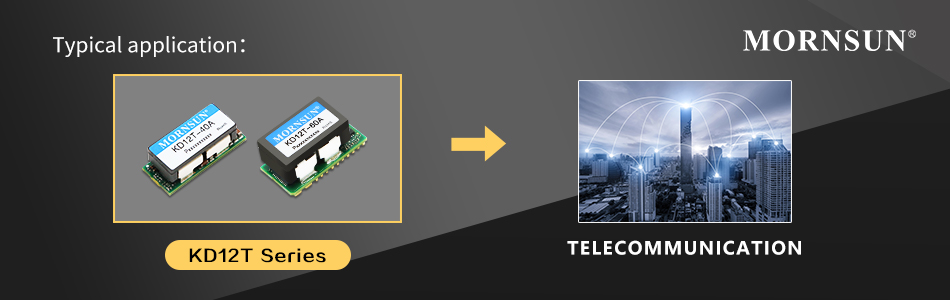

KD12T series products can be widely used in the fields of communications, computer network industries, and power distributed architecture, workstations, servers, LANs/WANs, providing high current with fast transient response for high-speed chips of FPGA, DSP, and ASIC.

KD12T series products can be widely used in the fields of communications.jpg



Features

  • Configuration and monitoring via PMBus

  • Wide input voltage range: 7.5 to 14.4VDC

  • Wide output voltage range: 0.6 to 4.5VDC

  • Current sharing up to 2 modules

  • High efficiency up to 92%

  • High output voltage deviation: ±2mV

  • Low output ripple and noise: 4mV

  • Fast load transient response: 18mV

  • Wide operating temperature range -40℃ to 85℃

  • Ultra-small size: 40A: 33.03x13.46x10.6mm; 60A: 25.4 x 12.7 x 12.96 mm

  • Remote CNTL, Power Good,

  • Tracking and output voltage sequencing, Differential remote sense

  • Fixed switching frequency with capability of an external synchronization

  • Current sharing function

  • Input undervoltage protection

  • Output over/under voltage protections

  • Output over current, over temperature, short circuit protections


* For detailed information please refer to the related datasheet, product news is for reference only.
