15W 176-528VAC Input AC/DC Converter for Flexible Design - LS15-26BxxR3 Series

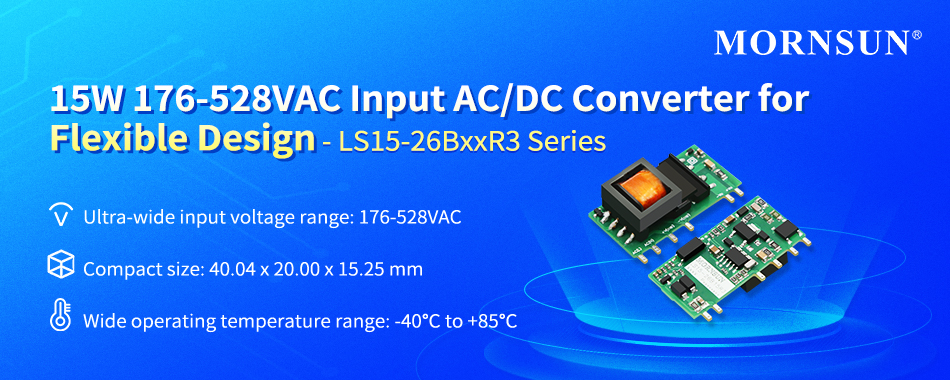

15W 176-528VAC Input AC/DC Converter for Flexible Design - LS15-26BxxR3 Series.jpg

MORNSUN launched the 15W AC/DC converter LS15-26BxxR3 series, which has an ultra-compact size and is flexible for multiple applications. The power range of the LS-R3 series covers 5/10/15W.

The LS15-26BxxR3 series features an ultra-wide input voltage range of 176 - 528VAC, wide operating temperature of -40℃ to +85℃, and a compact size of 40.04 x 20.00 x 15.25mm to build peripheral circuits flexibly. Meanwhile, this reliable power supply with low power consumption, complies with EN62368 standard, and it is a cost-effective solution for industrial control, electric power, and instrumentation, etc.



Advantages

1. Ultra-compact size

The compact size of 40.04 x 20.00 x 15.25mm, solves the space shortage problem in customers' design to improve space utilization.


2. Wide input voltage

176-528VAC/248-745VDC, accepts AC or DC input (dual-use of same terminal).


3. Wide operating temperature range

-40℃ to +85℃, working well in cold regions and in environments with poor ventilation.


4. Flexible layout design for versatile applications

Different applications require different parameters, LS15-26BxxR3 with a flexible peripheral design can meet customers' specific requirements. By changing the peripheral circuit, these modules can be used in consumer products to stand out from the low-cost competition and in the harshest outdoor environment on industrial occasions to meet extremely high-reliability requirements.


5. High performance

a. Isolation voltage up to 3600VAC, with simple peripheral circuits, EMI can meet CISPR32/EN55032 CLASS A or CLASS B.

b. No load power consumption as low as 0.5W (230VAC: 0.3W)

c. Comply with IEC/EN62368, IEC/EN62477, EN61010, and EN61558 standards



Applications

LS15-26BxxR3 series products can be widely used in occasions with space-limited but low EMC requirements, such as industrial control, electric power, instrumentation, etc. It is necessary to used with EMC peripheral circuit when applied in an environment of poor electromagnetic compatibility.

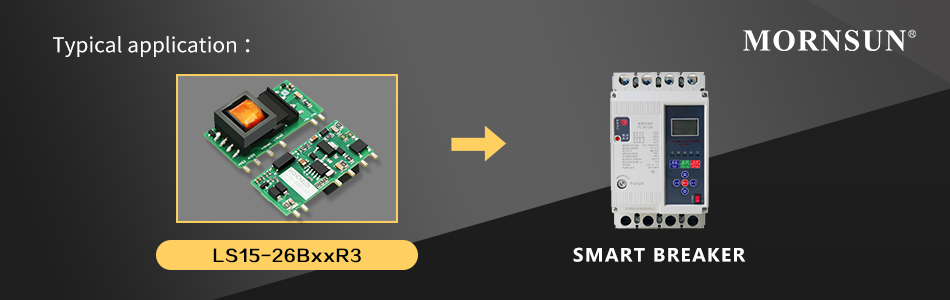

LS15-26BxxR3 series products can be widely used in occasions with space-limited but low EMC requirements.jpg

The products should be used in natural air-cooling environment, if used in a closed environment, don't hesitate to get in touch with our FAE team.



Features

  • Ultra-wide 176 - 528VAC and 248 - 745VDC input voltage range

  • Wide output voltage selections of 3/5/9/12/15/24V

  • Wide operating temperature range of -40℃ to +85℃ to meet the requirements of poor ventilation environmental occasions.

  • Multi-application, flexible layout

  • High power density with compact size: 40.04 x 20.00 x 15.25mm

  • Green power with no load power consumption as low as 0.5W

  • Output short circuit, over-current protection

  • Comply with IEC/EN62368, IEC/EN62477, EN61010, and EN61558 standards


* For detailed information please refer to the related datasheet, product news is for reference only.
