EMC Filter for Marine Industry - FC-I-CCS Series

EMC Filter for Marine Industry - FC-I-CCS Series.jpg

Introduction

In the power supply design of marine applications, the main power circuits often have high EMC interference in low-frequency. To increase the anti-interference capability, MORNSUN launches the FC-I-CCS series of EMC filters as a supplement to meet the design requirement, specifically for the AC/DC DIN Rail Power Supply.


Advantages

Compliance with Industry Safety

FC-I-CCS series features high reliability with CE markings (IEN62368). It is designed to meet the requirement of actual applications and can be compatible with the MORNSUN AC/DC DIN Rail Power Supply LIHF series, meeting the GD22-2015 standard of 10kHz - 30MHz, EMC1.

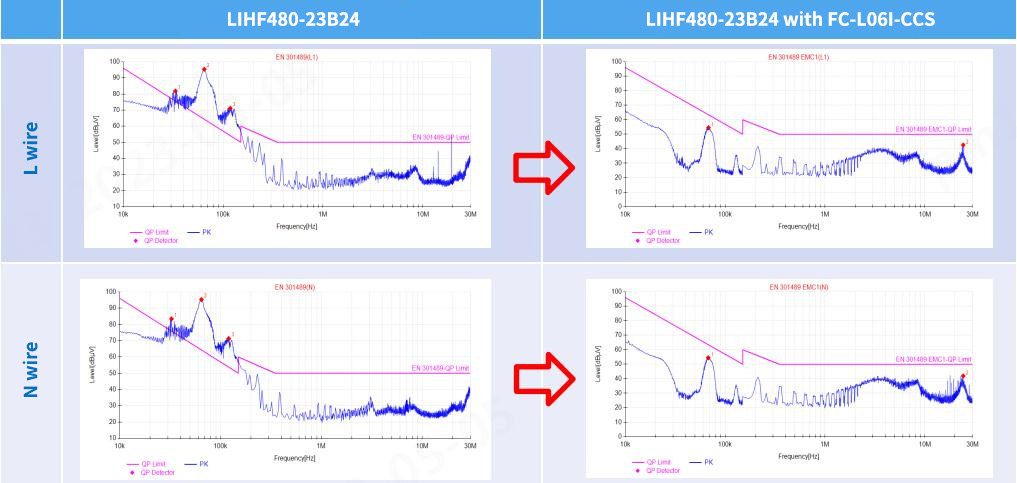

EMI test of LIHF VS LIHF with FC-L06I-CCS.jpg


Strong Immunity to CM & DM Interference

Based on the first-order filtering scheme, the EMC filter FC-I-CCS series has a strong immunity to CM & DM interference (CM/DM>40dB), which can effectively ensure the stability and reliability of the whole system.

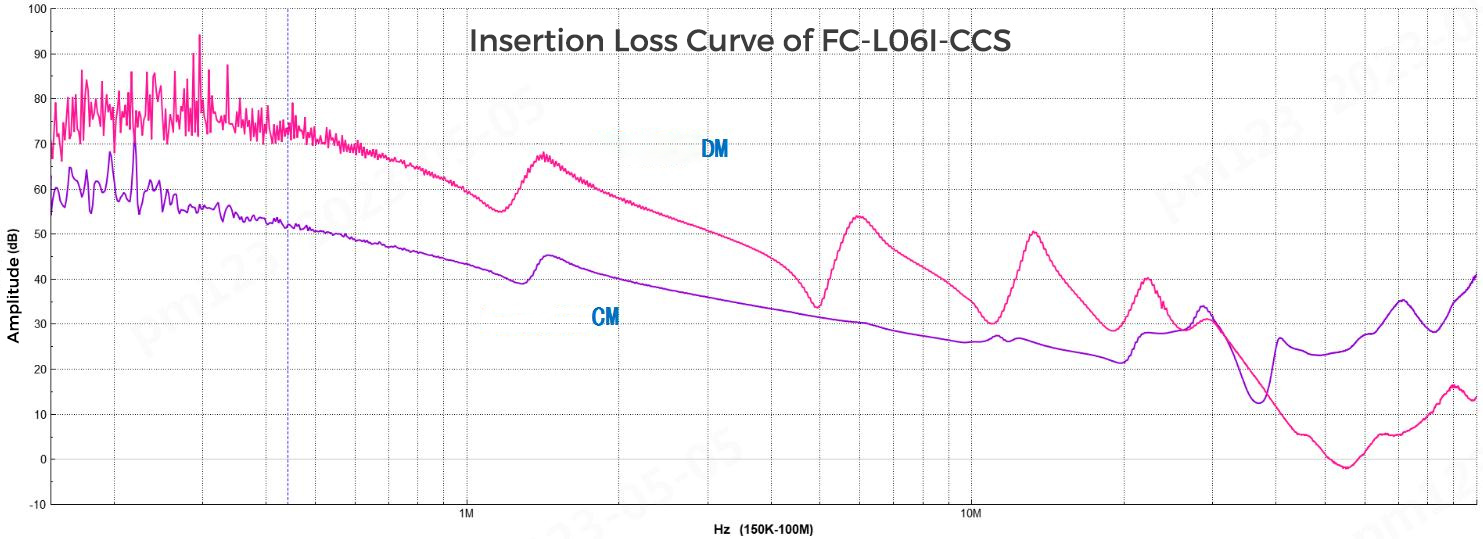

Insertion Loss Curve of FC-L06I-CCS.jpg


Strong Immunity to surge voltage

The fluctuation of the power supply circuits will cause a surge, which will greatly affect the back-end devices. If the back-end devices’ protection is not properly or enough, the whole system may cause faults. The FC-I-CCS series, a filter module applied in the input of the power supplies, has a strong immunity to surge voltage in conventional circuits, such as the surge of DM up to 4kV and a surge of CM up to 6kV.



Applications

FC-I-CCS, compatible with MORNSUN High-reliability AC/DC DIN Rail Power Supplies, can be applied in harsh environments, such as marine equipment, wind power, railway, new energy, etc.

FC-I-CCS compatible with MORNSUN High-reliability AC/DC DIN Rail Power Supplies can be applied in harsh environments.jpg



Features

  • Ultra-wide input voltage range: 0-305VAC

  • Operating temperature range: -40℃ to +85℃

  • Good EMC performance: meets IEC/EN61000-4 and CISPR32/EN55032

  • Double-sided conformal coating, salt-spray proof, corrosive-proof

  • Surge meets ±4kV/6kV

  • Insertion loss: CM/DM>40db @ 150K-1MkHz

  • Comply with IEC62368 standards

  • Compliance with CCS standard: GD22


Selection Guide

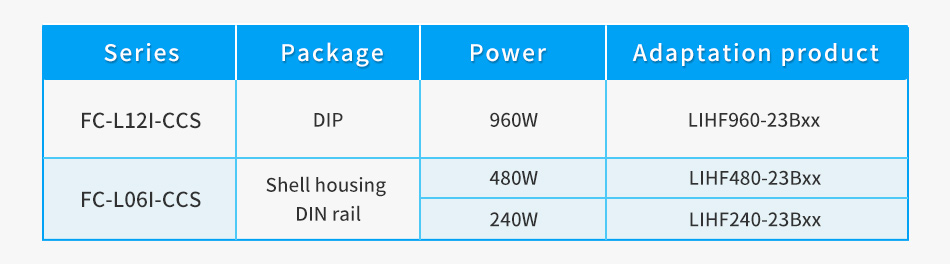

Selection Guide of FC-I-CCS.jpg

* For detailed information please refer to the related datasheet, product news is for reference only.
