Ultra-slim EMC Filter for AC/DC Brick Converters - FC-LxxB Series

Introduction

In the power supply design and applications, the main power circuits often have high EMC interference. In order to increase the anti-interference capability, MORNSUN launches the FC-LxxB series of EMC filters as a supplement to meet the design requirement, specifically for the AC/DC BRICK converters.

Advantages

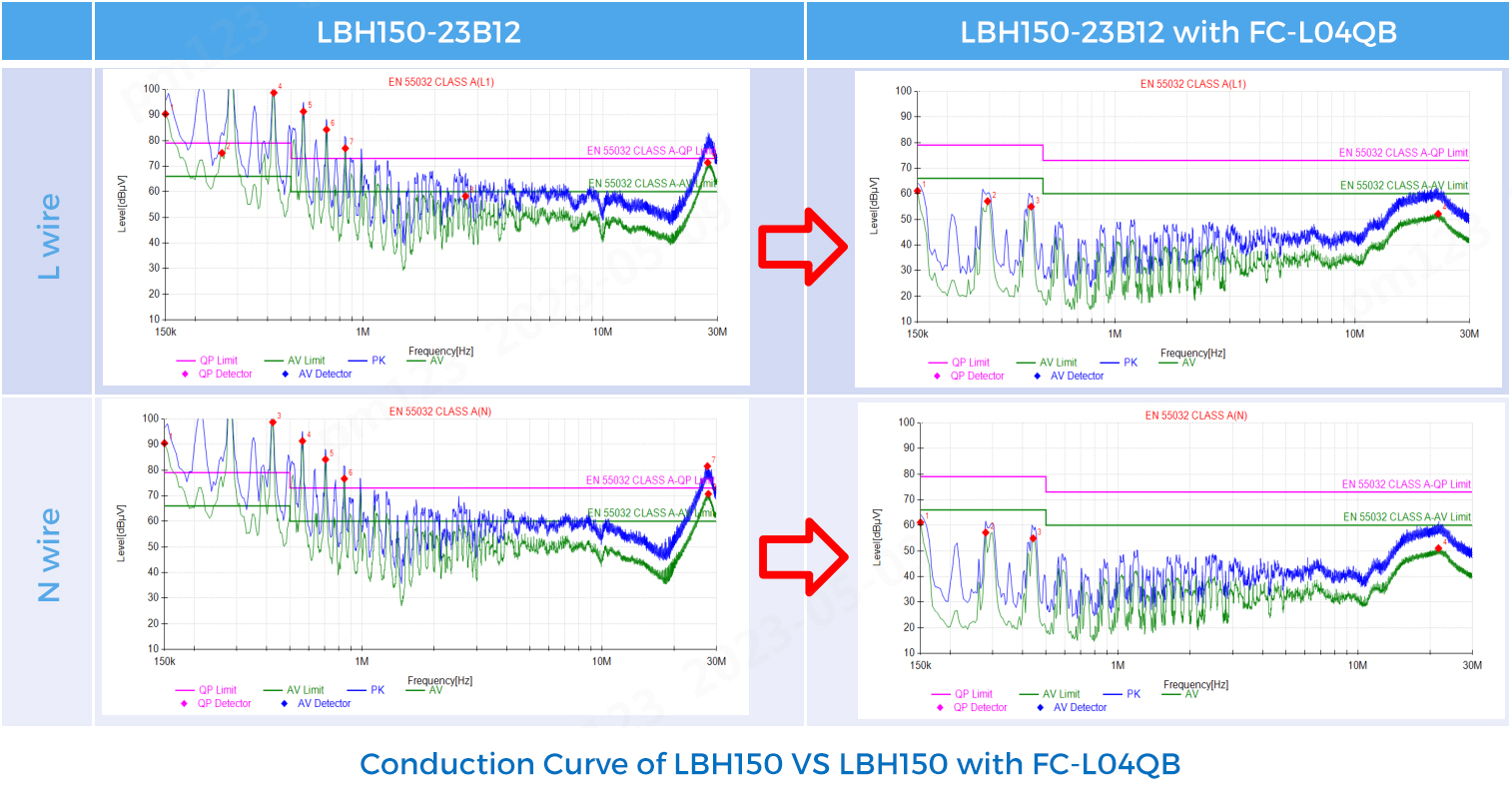

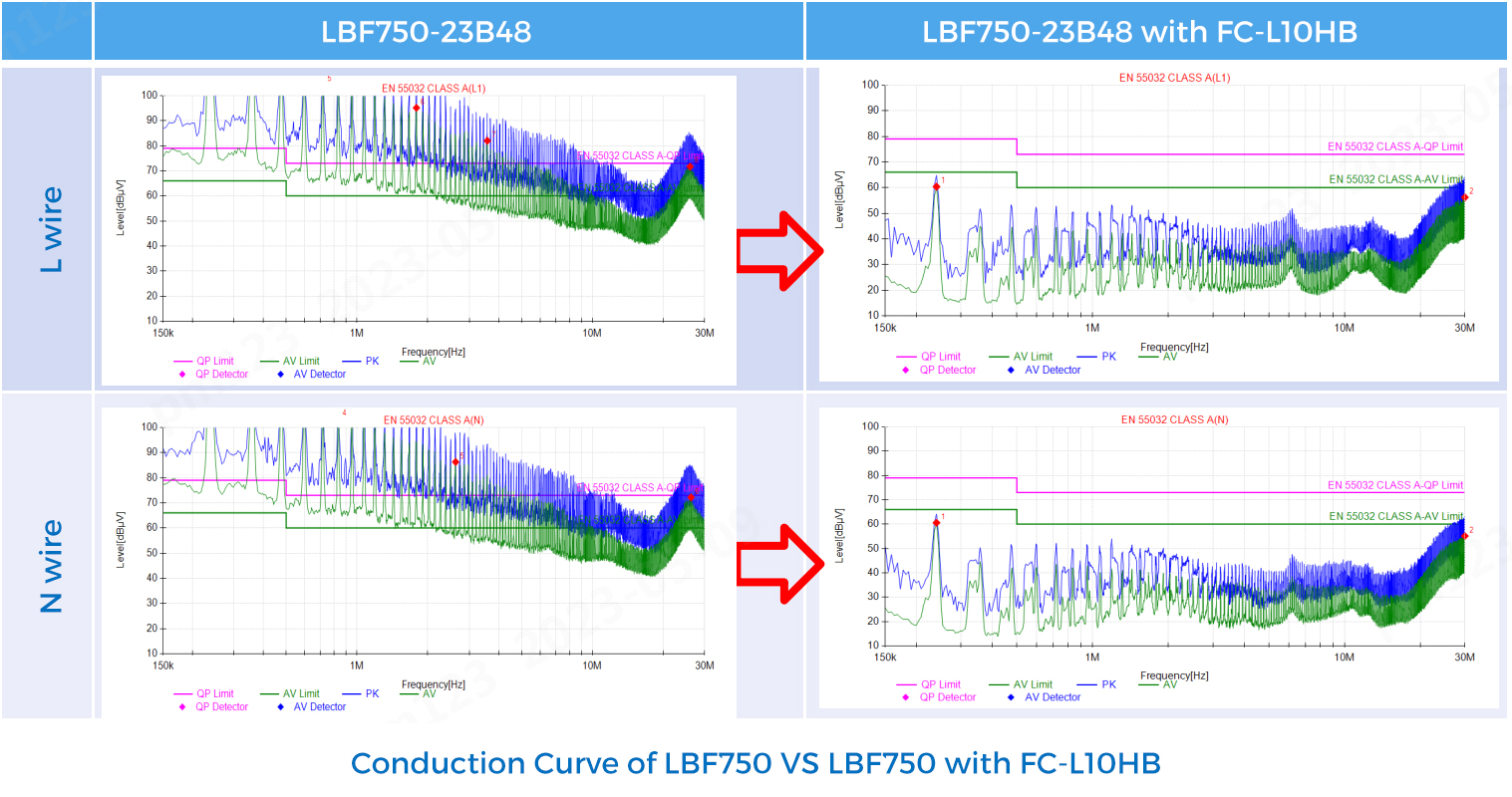

Strong Immunity to CM & DM Interference

Based on the first-order filtering scheme, the EMC filter FC-CxxD series has a strong immunity to CM & DM interference (CM/DM>65dB), which can effectively ensure the stability and reliability of the whole system.

Strong Immunity to surge voltage

The fluctuation of the power supply circuits will cause a surge, which will greatly affect the back-end devices. If the back-end devices’ protection is not properly or enough, the whole system may cause faults. The FC-LxxB series, a filter module applied in the input of the power supplies, has a strong immunity to surge voltage in conventional circuits, such as the surge of DM up to 2kV and a surge of CM up to 4kV.

Compliance with Industry Safety

FC-LxxB series features high reliability with CE markings (IEC60939/EN62368). It is designed to meet the requirement of actual applications and can be compatible with MORNSUN AC/DC BRICK converters LBF series, meeting the CISPR32/EN55032 CLASS A standard.

Applications

FC-LxxB compatible with MORNSUN AC/DC brick converters can be applied in industrial control, telecommunication, wireless, instrument, server, computer, semiconductor, etc.

Features

Ultra-wide input voltage range: 0-305VAC

Operating temperature range: -40℃ to +105℃

Good EMC performance: meets IEC/EN61000-4 and CISPR32/EN55032

Surge meets 2kV/4kV

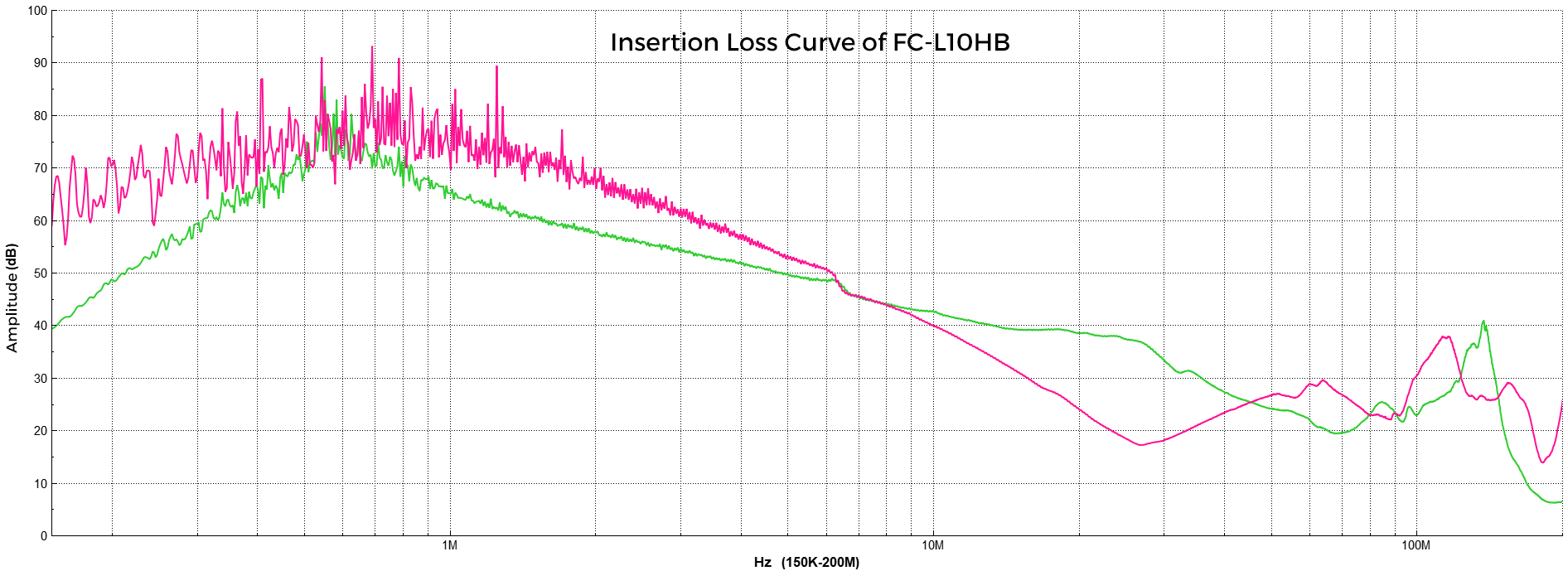

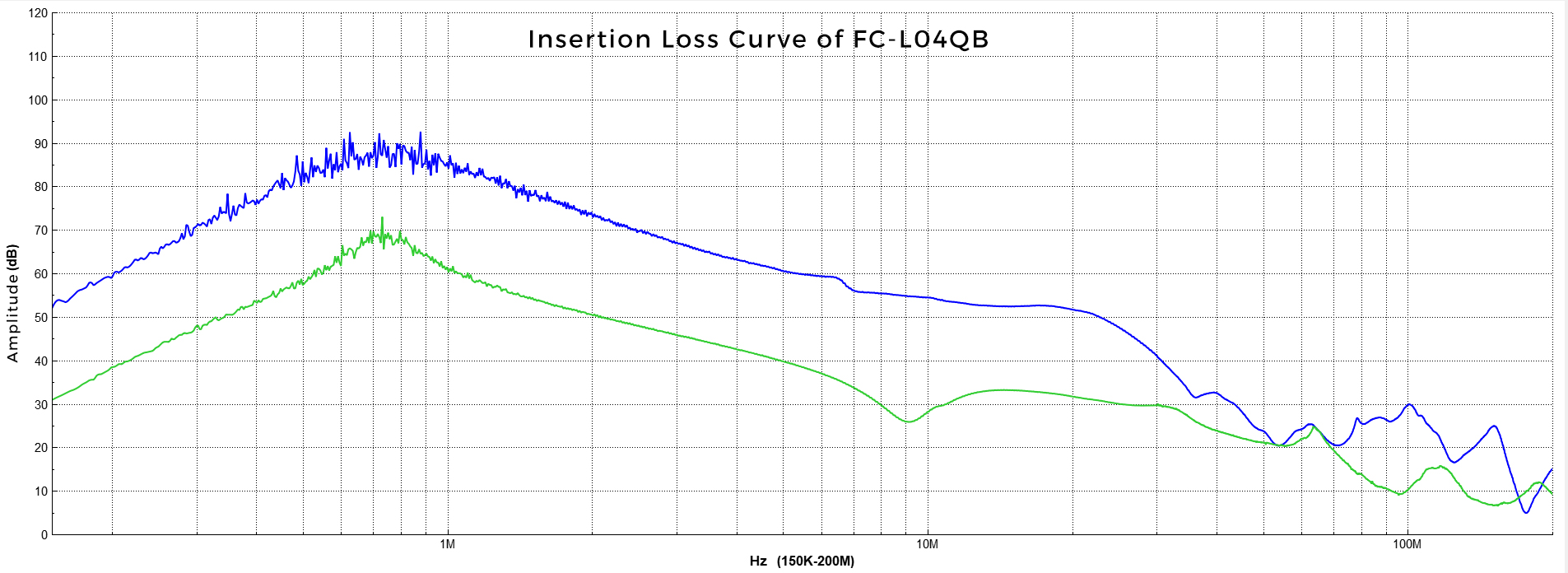

Insertion loss: CM/DM>65db

Comply with IEC62368 standards

Universal footprint, ultra-slim brick package

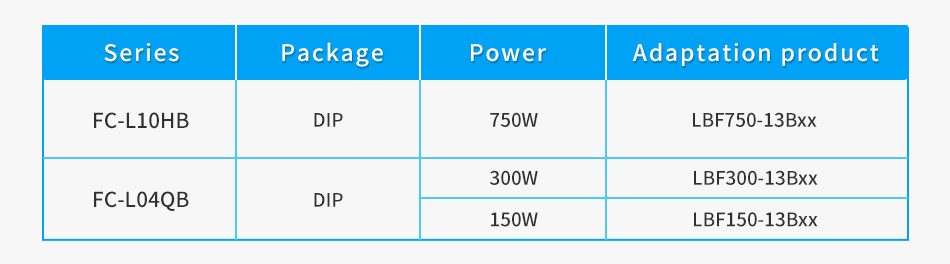

Selection Guide
