EMC Filter for AC/DC Converters - FC-LxxD Series

EMC Filter for AC/DC Converters - FC-LxxD Series.jpg

Introduction

In the power supply design and applications, the main power circuits often have high EMC interference. In order to increase the anti-interference capability, MORNSUN launches the FC-LxxD series of EMC filters as a supplement to specifically meet the design requirement.


Advantages

Strong Immunity to surge voltage

The fluctuation of the power supply circuits will cause a surge, which will greatly affect the back-end devices. If the back-end devices' protection is not properly or enough, the whole system may cause faults. The FC-LxxD series, a filter module applied in the input of the power supplies, has a strong immunity to surge voltage in conventional circuits, such as the surge of DM up to 4kV and a surge of CM up to 6kV.


Strong Immunity to CM & DM Interference

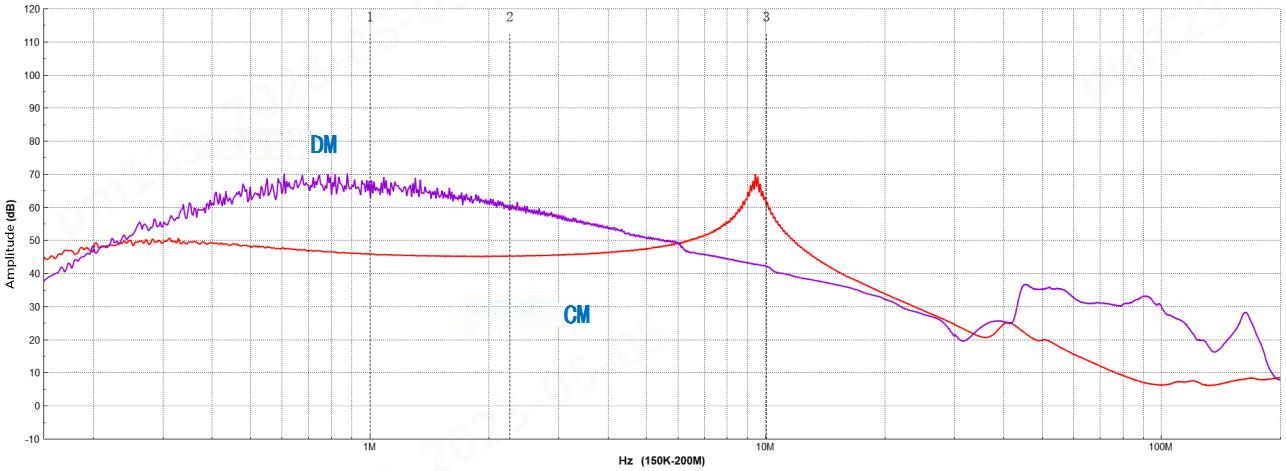

Based on the first-order filtering scheme, the EMC filter FC-CxxD series has a strong immunity to CM & DM interference (CM/DM>40dB), which can effectively ensure the stability and reliability of the whole system.

Strong Immunity to CM & DM Interference.jpg


Compliance with Industry Safety

FC-LxxD series features high reliability with CE markings (IEC60939/EN62368). It is designed to meet the requirement of actual applications and can be compatible with MORNSUN AC/DC converters LD series, meeting the CISPR32/EN55032 CLASS B standard.


Applications

FC-LxxD compatible with MORNSUN AC/DC converters LD series, can be applied in EV charging and industrial control.

FC-LxxD compatible with LD series can be typically applied in EV charging and industrial control.jpg


Features

  • Ultra-wide input voltage range: 0-305VAC

  • Operating temperature range: -40℃ to +85℃

  • Good EMC performance: meets IEC/EN61000-4 and CISPR32/EN55032

  • Surge meets 2kV/4kV, 4kV/6kV

  • Insertion loss: CM/DM>40db

  • Comply with IEC60939 and IEC62368 standards



Selection Guide

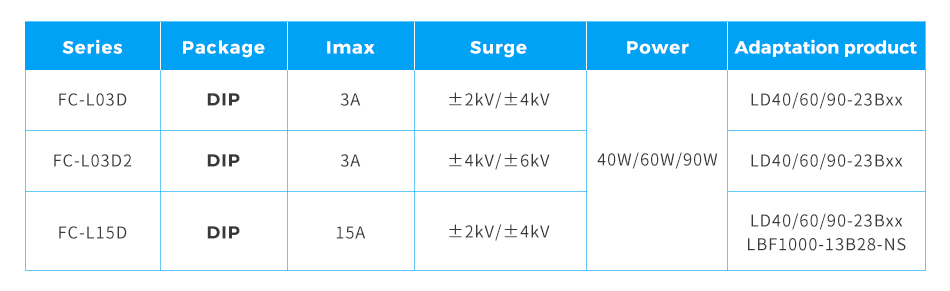

Selection Guide of FC-LxxD.jpg

* For detailed information please refer to the related datasheet, product news is for reference only.
