15-65W High-reliable Open-frame AC/DC Power Supply with adjustable output - LOXX-20Bxx-M Series

15-65W High-reliable Open-frame AC/DC Power Supply with adjustable output - LOXX-20Bxx-M Series.jpg

MORNSUN expands the LO series product range to offer customers various application selections. The new series of 15-65W LOXX-20Bxx-M are open-frame power supplies with an adjustable output voltage of ±10% and cover the power range of 15/25/35/45/65W.

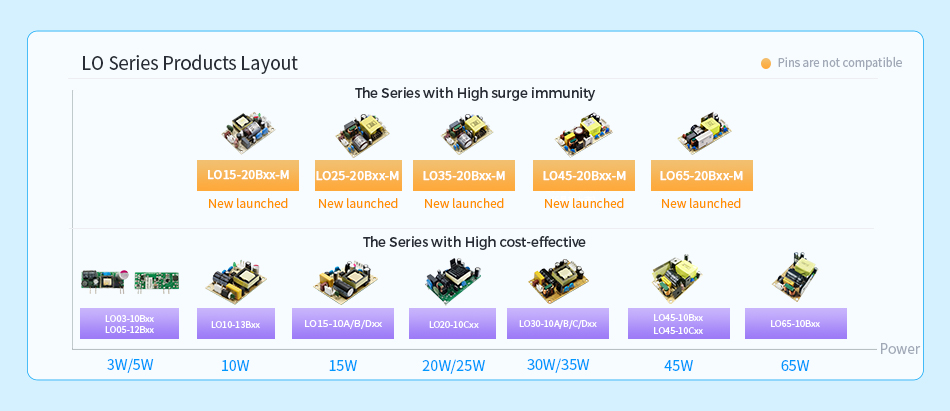

power range of 15/25/35/45/65W for various application selections.jpg

They feature a wide input voltage range of 85-264VAC (transient: 305VAC/5s), a 3-year warranty, 4000VAC high isolation voltage, a wide operating temperature of -40℃ to +85℃, high efficiency of 90%, and complete protection.

Furthermore, they are safe and reliable with outstanding EMC performance, including surge meets IEC/EN61000-4-5 Line to line ±2KV/line to PE ±4KV, EFT meets IEC/EN61000-4-4 ±2KV [suitable for Class I (PE) system], and comply with EN62368 standard.

They are widely used in LED, industrial, electronic, office, and civil applications.



Advantages

High performance

  • Wide input voltage range: 85-264VAC / 100-370VDC, transient voltage up to 305VAC/5s

  • Wide output voltage selections: 5/12/15/24/36/48V. 3.3V output voltage is available with 45W

  • Adjustable output voltage of ±10%, efficiency up to 90%

  • Wide operating temperature range: -40℃ to +85℃ (Full load @-30℃)



High reliability

  • Surge meets IEC/EN61000-4-5 Line to line ±2KV/line to PE ±4KV, EFT meets IEC/EN61000-4-4 ±2KV

  • 3-year warranty, meets 4000m altitude requirement

  • High isolation voltage: input-output 4000VAC, input-PE 2000VAC, output-PE 500VAC, leakage current <5mA

  • Full protection: Output short circuit, over-current, over-voltage protections

  • Safety PCB board terminal design, suitable for ClassⅠ(PE) system

  • EN62368-1, BSEN62368-1 standard approval, Design refer to UL/IEC62368-1, EN60335-1



Applications

LOxx-20Bxx-M can be widely used in the fields of LED, industrial, electronic, office, and civil applications.

The products should be used in natural air cooling environment, if used in a closed environment, please contact our FAE team.

Typical application of LOXX Series is Ultrasonic Welding Machine.jpg


Features

  • Universal 85-264VAC or 100-370VDC input voltage (transient: 305VAC/5s)

  • Wide output voltage selections of 5/12/15/24/36/48V. 3.3V output voltage is available with 45W

  • Adjustable Output voltage of ±10%

  • Operating ambient temperature range: -40℃ to +85℃ (Full load @-30℃)

  • Output short circuit, over-current, over-voltage protections

  • 3-year warranty, 4000VAC isolation voltage, meets 4000m altitude requirement

  • Installing in the system of Safety Class I is available

  • Surge meets IEC/EN61000-4-5 Line to line ±2KV/line to PE ±4KV, EFT meets IEC/EN61000-4-4 ±2KV

  • EN62368-1, BSEN62368-1 standard approval, Design refer to UL/IEC62368-1, EN60335-1




* For detailed information please refer to the related datasheet, product news is for reference only.
