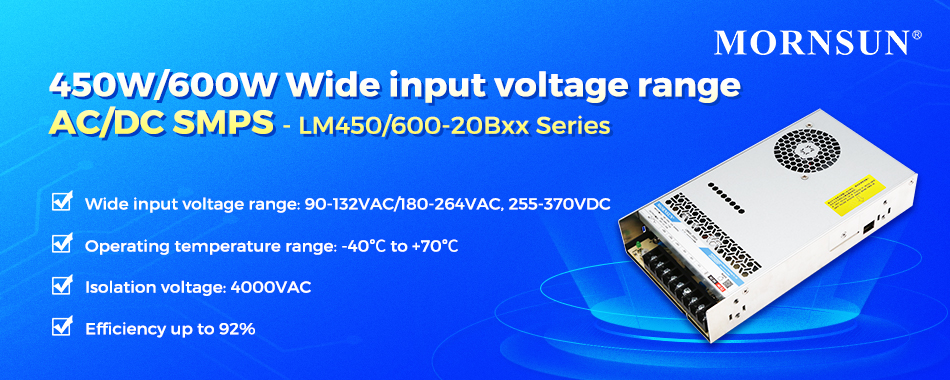

450W/600W Wide input voltage range AC/DC SMPS - LM450/600-20Bxx Series

450W/600W Wide input voltage range AC/DC SMPS - LM450/600-20Bxx Series.jpgMORNSUN LMXX-20Bxx series features a wide input voltage range, high isolation, high efficiency, and high reliability, which makes it can be used in harsh environments such as outdoors or with power grid fluctuation. Now we expanded its power range from 350W to 450W and 600W to provide more choices for customers.



Product advantages

A wide range of applications

  • Wide input voltage range: 90-132VAC/180-264VAC, 255-370VDC

  • Operating temperature range: -40℃ to +70℃

  • Safety according to UL/EN/IEC62368, EN61558, EN60335, GB4943

  • Meets pollution degree 3

  • Operating altitude up to 5000m


Safe and reliable

  • Electronic products often run in complex working conditions with high electromagnetic interference and frequent changes in operating status. The LM450-20Bxx and LM600-20Bxx series have excellent EMC performance and a variety of intelligent protection functions.

  • High isolation voltage up to 4000VAC

  • Output short circuit, over-current, over-voltage, over-temperature protections

  • High-hardness housing material, and rivet nuts for proper installation


High efficiency

The efficiency of this series of products is up to 92%, effectively improving the efficiency of customer systems and saving energy, helping to create a green and efficient application system.



Applications

These products can be widely used in areas of industrial control, lighting, electric power, security, communication, smart home, and other fields.

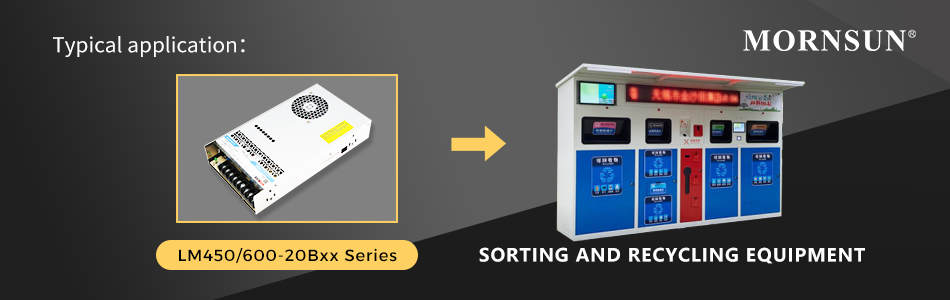

Typical application of LM series is Sorting and recycling equipment.jpg



Features

  • Universal Input voltage range: 90~132VAC/180~264VAC,255~370VDC

  • Accepts AC or DC input (dual-use of same terminal)

  • Operating temperature range:-40°Cto+70°C

  • Low standby power consumption, low ripple & noise

  • High efficiency up to 92%

  • High isolation voltage up to 4000VAC

  • Output short circuit, over-current, over-voltage, over-temperature protections

  • Operating altitude up to 5000m

  • Safety according to UL/EN/IEC62368, EN61558, EN60335, GB4943



* For detailed information please refer to the related datasheet, product news is for reference only.
