250-1500VDC Wide-input Miniature DC/DC Converter for Renewable Energy - PV200-29BxxR3

250-1500VDC Wide-input Miniature DC/DC Converter for Renewable Energy - PV200-29BxxR3.jpg

MORNSUN launched the 200-watt DC/DC Converter PV200-29BxxR3 series for renewable energy industries, such as SVG, photovoltaic power, high voltage frequency conversion, etc. They are a highly cost-effective, high-quality, safe, and reliable power solution, and the dimensions have been reduced by 56% than PV200-29Bxx series but with better performance. They feature 1700VDC high transient voltage for 10s, high efficiency up to 93%, screw terminal or lead type optional, and are designed to meet CE/UL standards. Furthermore, PV200-29BxxR3 provides multiple protections, multiple packages, and are 3-year warranty.

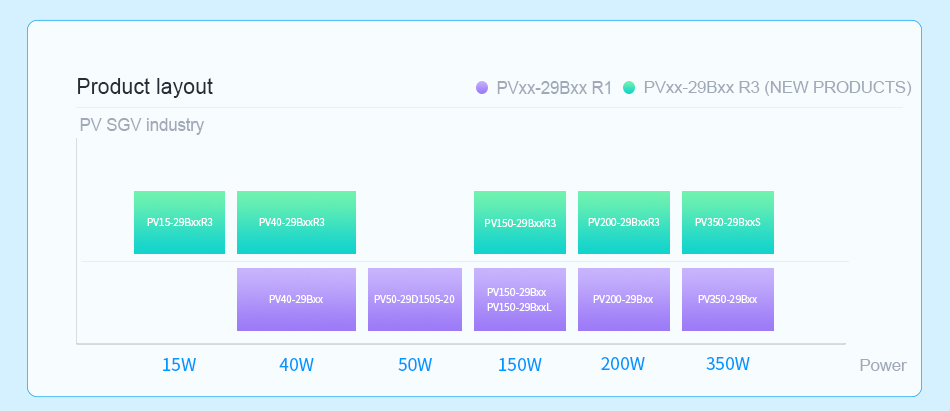

Product Layout

Product Layout for PV-R3.jpg



Advantages

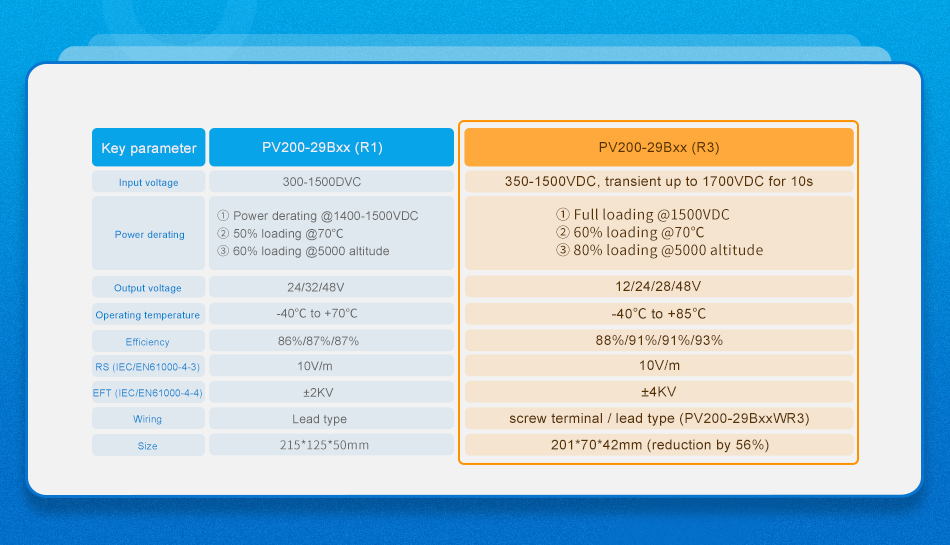

1. Smaller & better performance

Performance upgraded.jpg



2. High reliability

① High isolation voltage: Input-output voltage up to 4000VAC

② Multiple protections: Input under-voltage protection, input reverse polarity protection, output short circuit, over-current, over-voltage protection

③ Screw terminal or lead type optional

④ Certifications: Comply with UL1741, EN/IEC/BSEN62109-1 standards



Applications

PV200-29BxxR3 are widely used in renewable energy industries, such as photovoltaic, PV combiner box, solar tracking system, centralized inverter, PV array inverter, energy storage, solar pumping system and high-voltage DC conversion.

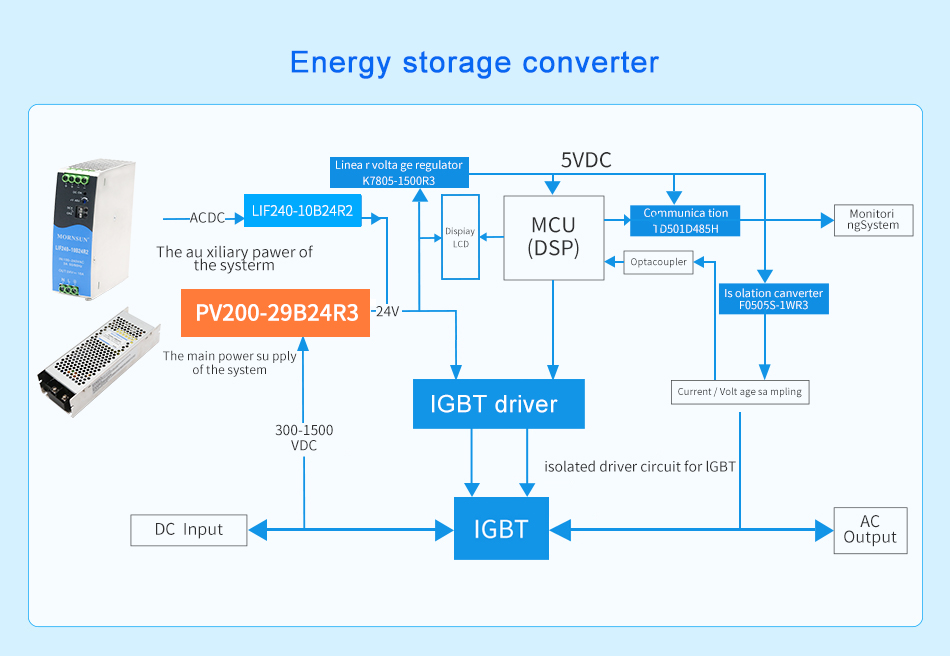

Energy storage converter

Energy storage converter.jpg


Solar tracking system

Solar tracking system.jpg



Features

  • Ultra-wide input voltage: 250-1500VDC (Transient voltage up to 1700VDC for 10s)

  • Operating temperature: -40℃ to +70℃

  • Dimension reduced by 56% than PV200-29Bxx series

  • Screw terminal or lead type optional

  • Good EMC performance: EFT: IEC/EN61000-4-4 ±4KV

  • High isolation voltage up to 4000VAC

  • 3-year warranty, 5000m altitude

  • High efficiency, low ripple & noise, high reliability, long lifespan

  • Input under-voltage protection, input reverse polarity protection, output short circuit, over-current, over-voltage protection

  • Safety according to UL1741, EN/IEC/BSEN62109-1 standards



* For detailed information please refer to the related datasheet, product news is for reference only.
