40/60W Ultra-compact AC/DC Converters LD40/60-23BxxR2 in 305RAC Family
MORNSUN launched the new modules LD40-23BxxR2 and LD60-23BxxR2 to expand the power range of the "305RAC" Family. Now the power range of LD-R2 covers 3/5/10/15/20/30/40/60/90W. LD40/60-23BxxR2 comply with the "305RAC" family's features of an ultra-slim size, high performance, high efficiency, and wide input voltage range of 80-305VAC. What's more, they meet industrial standard of IEC/EN/UL62368, household standard of EN60335/61558, and OVC III (IEC62477-1).
Advantages

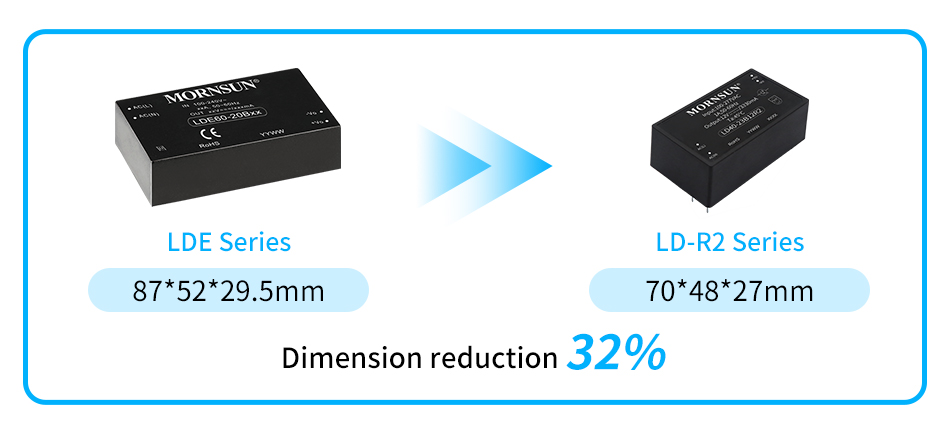

1. Compact size
40W：69.5*39.0*24.0mm
60W：70.0*48.0*27.0mm
2. Ultra-wide input voltage range: 85-305VAC or 100-430VDC
Accepts AC or DC input (dual-use of same terminal), helpful to solve the fault caused by voltage fluctuation
3. Wide operating temperature range: -40℃ to +85℃
@-25℃ without derating, meeting 5000m altitude requirement and meeting the harsh temperature requirement of high latitude, high altitude area, such as extremely cold weather and poor ventilation environment.
4. High-reliability, Outstanding EMC performance
High isolation voltage up to 4200VAC
Meet IEC/EN/UL62368/EN60335/EN61558 standards, OVC Ⅲ (meet EN62477-1 standard)
Applications
LD40/60-23BxxR2 can be widely used in industrial control systems, electric power, instrument, telecommunication, smart home, smart building, etc.
Features
Compact size, high power density
Wide input voltage range 85-305VAC or 100-430VDC
Operating temperature range: -40℃ to +85℃
High isolation voltage up to 4200VAC
5000m altitude application
Comply with EN/UL62368/EN61558/EN60335 (for White goods applications) standards
OVC Ⅲ (meet EN62477-1 standard)
Output short circuit, over-current, over-voltage protections
