100W Din rail AC/DC Power Supply for Smart Homes - LI100-20BxxPR3 series

100W Din rail AC/DC Power Supply for Smart Homes - LI100-20BxxPR3 series.jpg

MORNSUN launched the 100W AC/DC power supply LI100-20BxxPR3 series with the outputs of 12V, 15V, 24V, and 48V. Its white, plastic rail package is well suited for lighter-looking smart home applications.


This series features constant current protection, an ultra-wide operating temperature range, high efficiency, and LED indicator, making it a stable and safe power supply for different applications. And it is 3 years warranty.


Advantages

1. Wide input voltage range

Universal input voltage range: 85-264VAC/120-370VDC, withstand 300VAC surge input for 5s, Accepts AC or DC input (dual-use of same terminal)


2. Outstanding performance

① Efficiency up to 91%, improving reliability and service life of the power supply;

② Operating temperature range: -40℃ to +70℃, full load @45℃ without derating;

③ Output short circuit, over-current, over-voltage protections; when output current≥110%Io, output voltage within 50% -100% rated, the product is in constant current mode.


3. Wide range of applications

White case and elegant design, especially suitable for smart homes;

Suitable for small chassis, narrow cabinets, and common industrial control applications.


4. High quality and Fast delivery

① 3-year warranty, high I/O isolation voltage up to 4000VAC

② Stable supply chain for fast delivery

③ Surge: EC/EN61000-4-5 Line to line ±2KV; Harmonic current: IEC/EN61000-3-2 CLASS A; meet 85℃ temperature and 85% humidity test

④ Safety according to UL/EN/IEC62368, EN60335, EN61558, EN62477, EN61010, UKCA, BIS

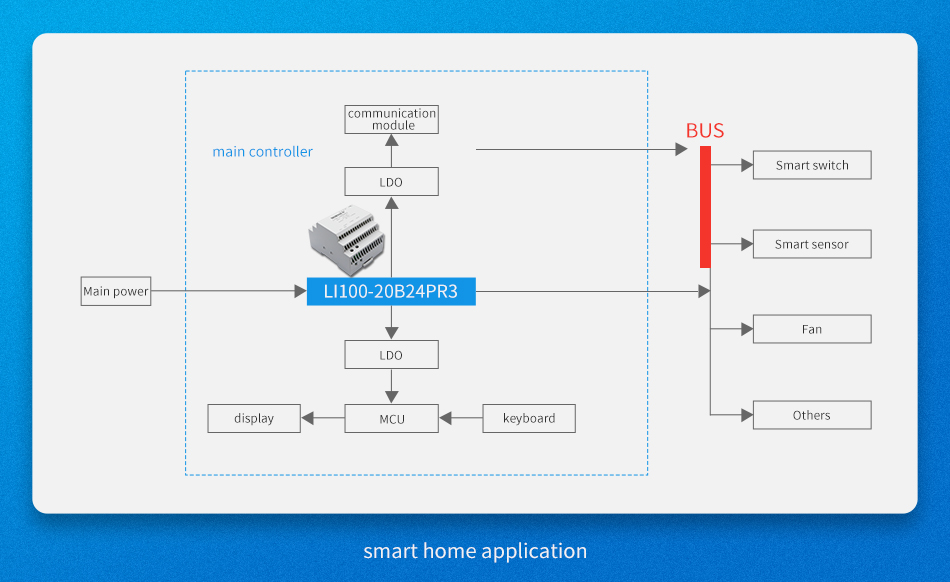

Applications

It can be widely used in industrial control equipment, machines, rail transportation, and other industrial equipment in harsh environments, and is also suitable for smart homes, providing high stability, high anti-interference, and high electrical performance power supply to the system.

widely used in industrial control equipment.jpg


Features

  • Input voltage range: 85-264VAC/120-370VDC, withstand 300VAC surge input for 5s,

  • Efficiency up to 91%

  • Operating temperature range: -40℃ to +70℃

  • OVC III

  • Meet 2000m altitude (Designed to meet EN62477standards) application

  • 3 years warranty

  • DIN rail TS35X7.5/ TS35X15 mountable

  • Output short circuit, over-current, over-voltage protections

  • Safety according to UL/EN/BS EN 62368, EN60335, EN61558, EN62477

* For detailed information please refer to the related datasheet, product news is for reference only.
