750W AC/DC Enclosed Switching Power Supply for Fire protection industry --- LMF750-12B36XF-XX Series

MORNSUN 750W AC/DC Enclosed Switching Power Supply for Fire protection industry --- LMF750-12B36XF-XX Series.jpg

MORNSUN’s LMF750-12B36XF-XX series-750W AC DC enclosed power supply with active PFC is a 36V emergency lighting centralized power supply, which is safe and reliable, and meets the latest GB17945 standard. The product is used in a centralized control system of emergency lighting and evacuation indication systems with centralized power supply for the lamps.


Advantages

Compact size, high power density

a. 261*136*45mm, power density up to 7.7W/inch3, 67.53% higher than conventional products on the market.

b. Intelligent air cooling function, energy-saving


Wide application range

a. Meets GB17945 standard

b. Operating temperature range: -20℃ to +55℃, higher criterion compare to conventional products

c. PF > 0.95 (Full load @230VAC)


High-reliability

a. 3-year warranty

b. Output short-circuit, over-current, over-voltage, over-temperature protection

c. Long lifespan and high reliability with intelligent air cooling function

d. Multiple productions to enhance reliability, such as

  • precision voltage detection,

  • main power anti-backflow design,

  • smoothly switching design of main and backup power,

  • 380VAC-input over-voltage protection,

  • precision battery charging management,

  • battery reverses polarity protection,

  • backup battery inspection, etc.


Green power

a. Efficiency up to 93%


Full auxiliary function

a. With UART/RS485 communication interface device

b. Upper computer interface design


Good EMC Performance

a. CE meets CISPR32/EN55032                           CLASS A

b. RE meets CISPR32/EN55032                           CLASS A

c. Harmonic current meets IEC/EN61000-3-2    CLASS A

d. ESD meets IEC/EN61000-4-2                          Contact±6KV/Air±8KV


Applications

This series of enclosed switching power supply features a backup power charging and detection function, and a smoothly switching design of main and backup power, which is suitable for the fire protection industry.

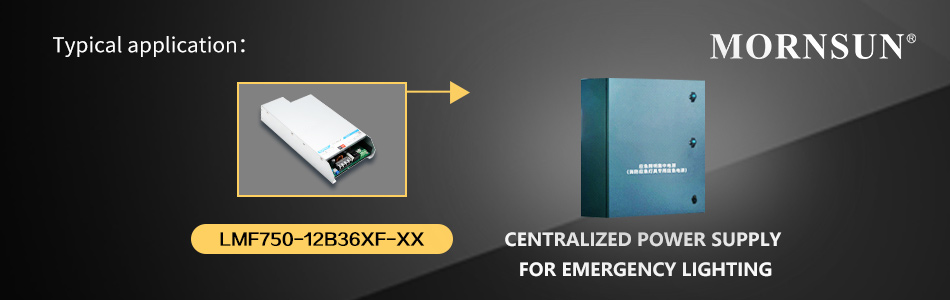

MORNSUN AC/DC Enclosed Switching Power Supply for fire protection industry.jpg


Features

  • The active/standby switch over is seamless Smoothly switching design of main and backup power

  • Operating temperature range: -20℃ to +55℃

  • Active PFC

  • High isolation voltage up to 3000VAC

  • Output short-circuit, over-current, over-voltage, over-temperature protection

  • 380VAC-input over-voltage Protection

  • Force start (system emergency start connector)

  • Precision battery charging management

  • Battery Reverse Polarity Protection

  • Main power anti-backflow design

  • Backup battery performance detection

  • With UART/RS-485 communication interface device

  • Reverse alarm and close alarm connector

  • PWM fan


* For detailed information please refer to the related datasheet, product news is for reference only.
