Automotive Isolated CAN Transceiver Module -CTD-CAN Series

Automotive Isolated CAN Transceiver Module -CTD-CAN Series


Thanks to the simple CAN bus transmission and wiring, as well as the strong anti-interference ability, CAN bus has become the preferred communication protocol for the automotive electronics industry.


Mornsun released a new automotive CAN transceiver module series CTD-CAN. From design, verification to production processes, this CTD-CAN series is completely in accordance with IATF16949 system requirements and meets AEC-Q100 standards.

With the design concept of compact size, SMD package high reliability and efficient production, the new CTD-CAN series adopt IC integrated technology to integrate power isolation, signal isolation, CAN transceiver, and bus protection in one module, which effectively solves the bus interference, abnormal communication issues.


Applications of Automotive Isolated CAN Transceiver Module -CTD-CAN Series

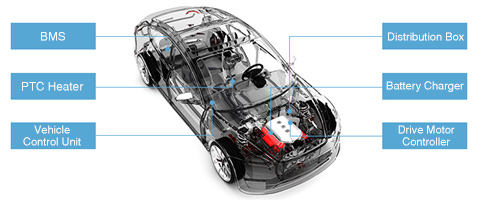

Widely used in applications of automotive electronics, automotive peripherals, instrumentation, communication, grid, etc.


CTD-CAN Series

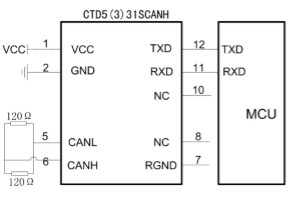

    Typical circuit block diagram is as below,


Typical circuit block diagram

Features of Automotive Isolated CAN Transceiver Module -CTD-CAN Series

Meets AEC-Q100 automotive standards
Production process meets IATF16949 standard
Operating ambient temperature range: -40℃ to +105℃
Integrated isolation and ESD protection in one module
Isolation: Two- port isolation 2500 VDC (input and output are mutually isolated)
Baud rate up to 1Mbps
EN62368 approval
Connect up to 110 nodes on one bus
Compact SMD package measuring 17.00*12.14*9.45mm




* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Integrated Power No of Channel Transmission Rate(bps) Vin(VDC) Nodes Number Isolation Package Features Footprint & 3D Markings Datasheet Sample
CTD331SCANH 1 40k~1M 3.3 110 2500VDC SMD ESD bus protection
CTD531SCANH 1 40k~1M 5 110 2500VDC SMD ESD bus protection
