MORNSUN AC-DC Isolated Transformer Series

MORNSUN launched AC-DC  isolated transformer series - TTLS03-15B-T, TTLDE05-20B-D, and TTLHE10 20 25 -D. These series are flyback transformers, have an isolation voltage of 3000VAC and 4000VAC and feature compact size and cost effective. Their operating ambient temperature range is -40℃ ~ +110℃ and they can be widely used in applications of consumer electronics power supplies and industrial equipment power supplies to achieve AC-DC power supply design with wide input voltage and various protection function and superior EMI performance.

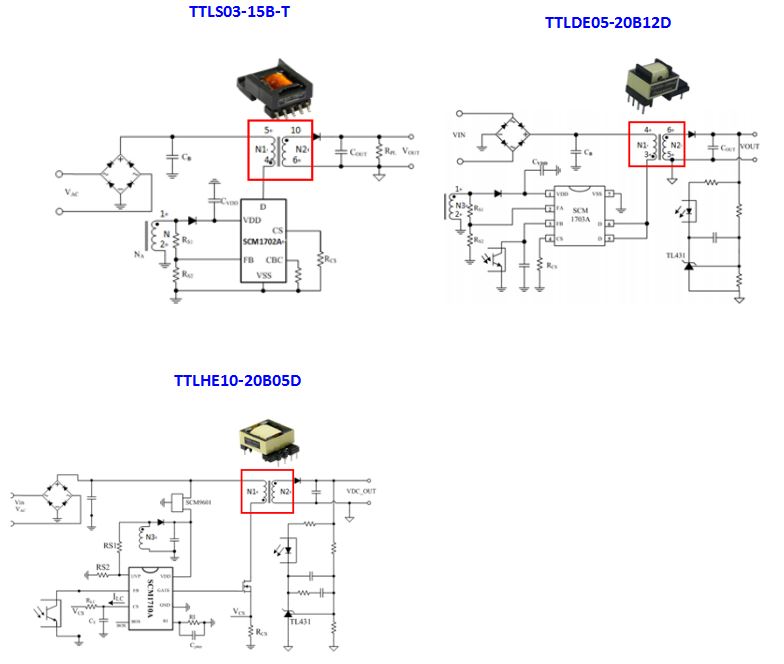

Application circuit:

MORNSUN AC-DC Isolated Transformer Series


Features:

TTLS03-15B-T series
- Operating mode: Flyback (SCM1702A)
- 85 - 305VAC wide input voltage range
- Output power: ≤3W
- EPC13 Bobbin
- Meets UL/EN 62368 standards


TTLDE05-20B-D series
- Operating mode: Flyback (SCM1703A)
- 85 - 264 VAC wide input voltage range
- Output power: ≤5W
- EE10 Bobbin
- Meets UL/EN 62368 standards


TTLHE10/20/25-20B-D Series
- Operating mode: Flyback (SCM1710A)
- 85 - 264 VAC wide input voltage range
- Output power: 10W to 25W
- EFD15 / EFD20 / EFD25 Bobbin
- Meets UL/EN 62368 standards
- Shielding layer and superior EMI performance
nce

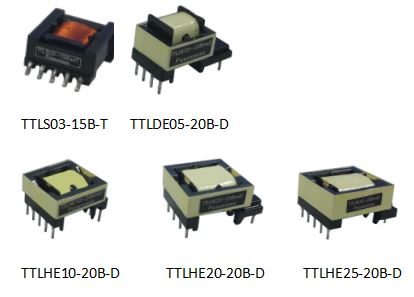

Product pictures:

MORNSUN AC-DC Isolated Transformer Series



* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Skeleton structure Topology Design Reference Footprint & 3D Markings Datasheet Sample
TTLS03-15B12T 3 85-305 12 1 3000 SMD EPC13 Flyback TTLS03-15B12T
-
TTLHE25-20B12D 25 85-264 12 1 4000 DIP EFD25 Flyback TTLHE25-20B12D
-
