10-60W Ultra Wide Ultra High Voltage Input Power Module - PV Multiple output series

MORNSUN recently launched 10-60W ultra wide ultra high voltage input power modules with multiple outputs - PV10-27C series, PV15-29C series, PV60-27D series, which can help customer to simplify the power system design, lower costs of system materials and improve the system reliability. They can be widely used in PV solar combiner, PV solar inverter, PV solar tracker, high voltage inverter applications.

Product advantages:
1. Ultra wide input voltage range, cost effective solution
    1) PV10-27C input voltage range: 200 - 1200VDC
        PV15-29C input voltage range: 200 - 1500VDC
        PV60-27D input voltage range: 200 - 1100VDC
    2)Multiple outputs that can help customers to simplify the power system design, improve the system reliability and lower costs for customers.

2. High reliability
    1) 4000VAC high isolation test voltage, meets reinforced insulation, MTBF ≧ 300,000 h;
    2) Meets CSA-C22.2 No.107.1, EN62109 safety standards;
    3) Complete protections including input under voltage, reverse input voltage, output short circuit, output over current, output over voltage, which can help customers to ensure the system’s stability and security.

3. Wide applications
    1) Industrial grade operating temperature: -40℃ to +70℃(PV60-27D series: No derating at 60℃);
    2) Meets 5000m altitude requirements, no derating of output power within 2000m altitude, especially suitable for high altitude outdoor occasions of thin air and large temperature difference between day and night.

Applications:
Widely used in PV solar combiner, PV solar inverter, PV solar tracker, high voltage inverter applications.

    1) PV solar combiner

    10-60W Ultra Wide Ultra High Voltage Input Power Module - PV Multiple output series

    2) PV solar string inverter

    10-60W Ultra Wide Ultra High Voltage Input Power Module - PV Multiple output series

Features:
    1) Ultra-wide input voltage range
        > PV10-27C triple output series: 200 - 1200VDC
        > PV15-29C triple output series: 200 - 1500VDC
        > PV60-27D dual output series: 200 - 1100VDC
    2) Industrial grade operating temperature: -40℃ to +70℃(PV60-27D series: No derating at 60℃)
    3) High I/O isolation test voltage of 4000VAC, isolation test voltage of each outputs is above 3500VAC
    4) Meets reinforced insulation
    5) High efficiency, low ripple & noise
    6) High reliability, long lifespan
    7) Input under voltage, reverse input voltage, output short circuit, output over current, output over voltage protections
    8) Meets 5000m altitude requirements
    9) Meets CSA-C22.2 No.107.1, EN62109 safety standards

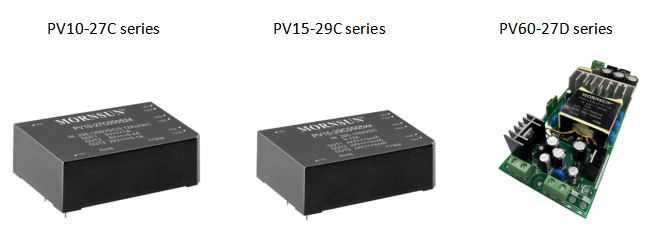

Product pictures:

    10-60W Ultra Wide Ultra High Voltage Input Power Module - PV Multiple output series



* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:
