High-power AC/DC Power Supplies Ensure the Reliability and Safety of Medical Equipment


CONTENTS

  • Meets medical certifications, reliable, EMC performance - keywords for medical power supplies

  • MORNSUN 1000-3000W high-power medical AC/DC power supply

  • Typical applications in the medical industry

  • Summary



  • With the continuous development of medical technology and the rapid growth of the elderly population, there is a high demand for healthcare facilities worldwide. The need for precise diagnosis and treatment has led to an increase in the number of large sophisticated medical devices. This has also increased the demand for high-power medical power supplies.

    High-power Medical ACDC Power Supplies Ensure the Reliability and Safety


    Meets medical certifications, reliable, EMC performance - keywords for medical power supplies

    As medical devices are mostly used in contact with the human body, safety and reliability are paramount. The following key points are generally paid attention to:

    1. Compliance with medical standards: The medical industry equipment has strict certification requirements, the system power supply must meet the internationally recognized medical certification standards;

    2. Good EMC performance: Precision medical equipment requires good EMC performance to prevent data transmission interference and reduce the risk of system failure;

    3. High reliability: Medical equipment systems are expensive and maintenance costs are high. Therefore, the requirement for power modules should be long-term stable operation with high reliability;

    4. Low leakage current, and safety: Most of the medical equipment is in direct contact with the human body. This necessitates the use of a power supply with high isolation voltage and low leakage current to guarantee sufficient safety.

    Therefore, medical devices have high requirements for reliability, medical certification compliance, and EMC performance of their internal conversion power supplies.


    MORNSUN 1000-3000W high-power medical AC/DC power supply

    Mornsun's 1000-3000W high-power medical AC/DC enclosed switching power supplies LMF series is designed with an innovative circuit. High reliability, compliance with medical certification standards and excellent EMC performance make this series an ideal choice for medical equipment.

    MORNSUN 1000-3000W high-power medical AC/DC power supply


    High reliability, compliance with medical certification

    • Meets IEC/EN/UL62368, IEC/ES/EN60601, GB4943 standards

    • 5-year warranty

    • CE & RE meets CISPR32 EN55011 CLASS A or EN55032 CLASS B, ESD meets IEC/EN61000-4-2 Contact ±8KV/Air±15KV

    • Meets 2×MOPP, extremely low leakage current <0.1mA

    • Multiple protections, such as short circuit, over-current, and over-voltage, over-temperature protections

    • Withstand 5G vibration test, 10~500Hz, 5G 10 min. / 1 cycle, period for 60 min. each along X, Y, Z axes

    • Double-side conformal coating


    In addition, Mornsun LMF1000/1500/3000 series has a high isolation voltage of up to 4000VAC, which provides sufficient safety. Meanwhile, its wide operating temperature range is from -40℃ to +70℃, and the operating altitude is up to 5000m.

    Mornsun LMF1000/1500/3000 series complies with mediical certification


    Excellent EMC performance, high efficiency

    Medical equipment's output (diagnostic) results are extremely important to patients, which requires the equipment to output accurate data. Therefore, the demand for power supply products with excellent EMI performance is crucial. The LMF1000/1500/3000 series, EMI meets CISPR32 EN55011 CLASS A or EN55032 CLASS B without special peripheral circuits, ESD meets IEC/EN61000-4-2 Contact ±8KV/Air±15KV, and with an efficiency of up to 94%, effectively improving the performance of the equipment.

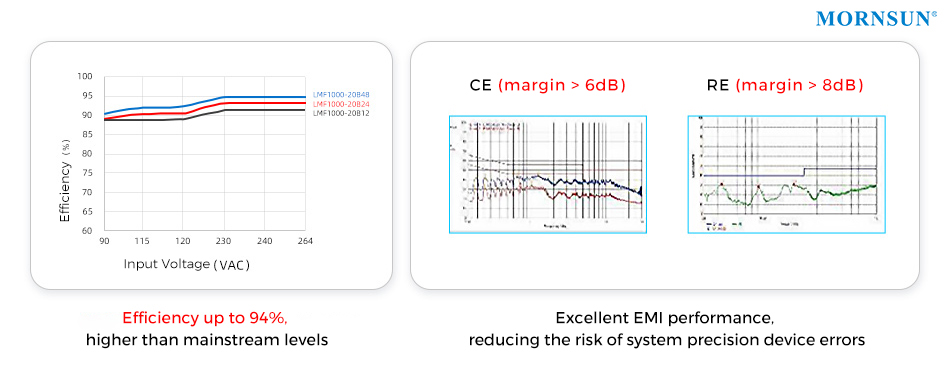

    ACDC SMPS LMF series with Excellent EMC performance and  high efficiency

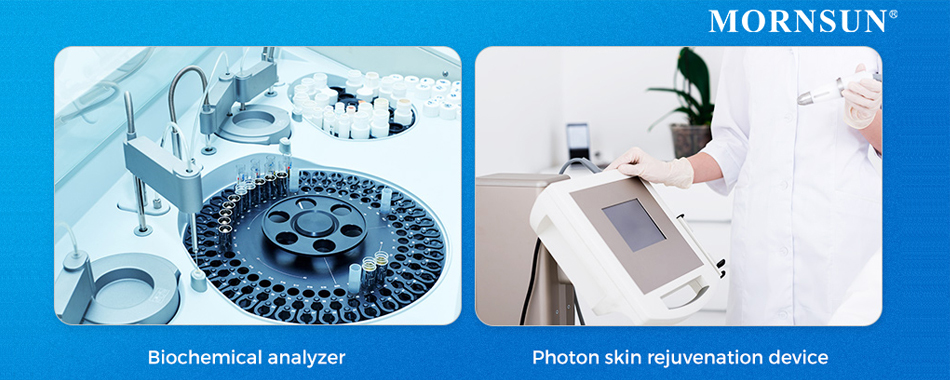

    Typical applications in the medical industry

    1. Biochemical analyzer

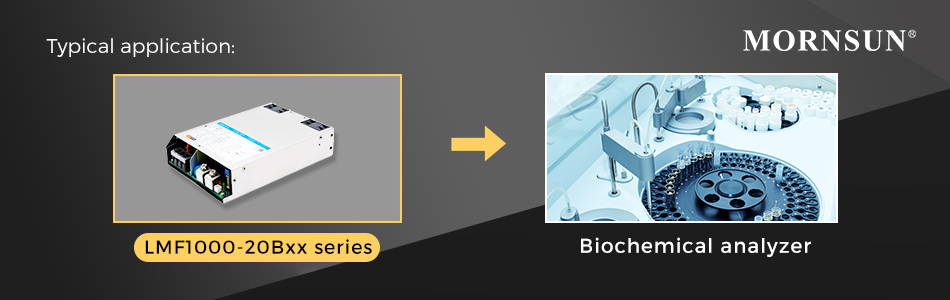

    MORNSUN ACDC SMPS LMF1000 used in Biochemical analyzer


    2. Photon skin rejuvenation device

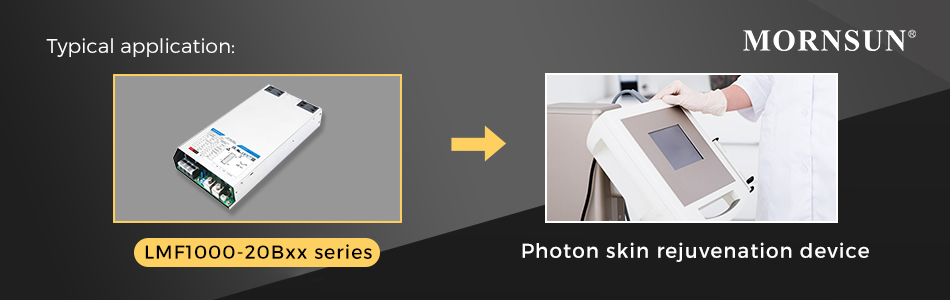

    MORNSUN Medical ACDC SMPS LMF series used in Photon skin rejuvenation device


    Summary

    High-quality healthcare helps to prevent disease and improve quality of life and is a major concern for everyone. As the medical industry continues to grow, there is no doubt that power solutions must follow suit as a complementary industry.


    As a professional medical-grade power supply manufacturer, from DC/DC converter to AC/DC power supply, we are committed to providing a wide range of 1W to 3,000W reliable and effective one-stop medical power supply solutions, helping our customers to simplify the design and speed up the delivery of reliable and safe medical devices.
